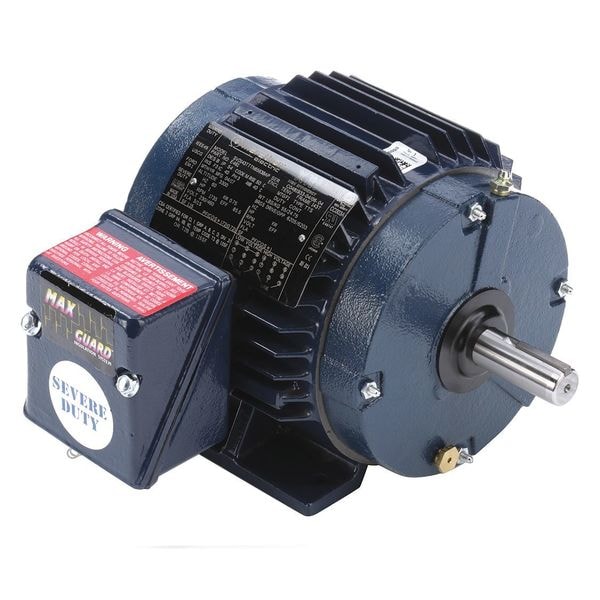

Severe Duty Mtr, 3-Ph, TENV, 1 HP
Mfr # 143TTTN6563
Zoro # G5656393
product price: $623.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1701-1800
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
143TTTN6563
Zoro #
G5656393
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
7/8 in
Length Less Shaft
7 7/8 in
Overall Length
10 7/16 in
Shaft Length
2 9/16 in
Lead Length
9" to 6"
Description
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1 HP, Nameplate RPM 1,735, Frame 143T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
