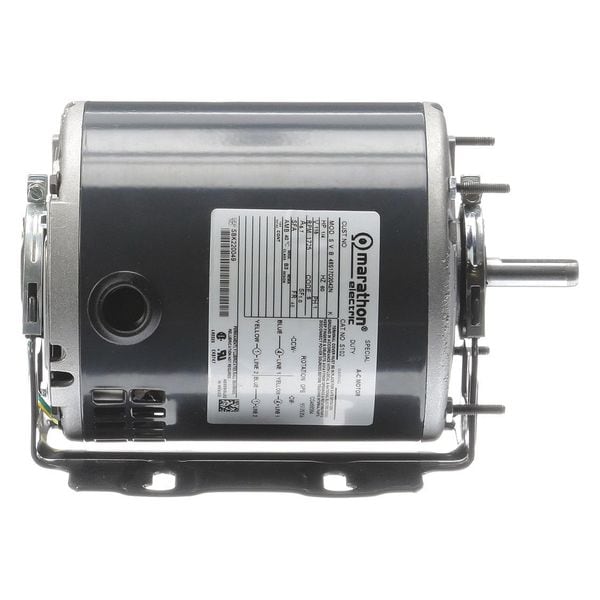

SP Motor, Split-Ph, 60 Hz, 1/4 HP
Mfr # 048S17D2042
Zoro # G6102792
product price: $172.99
/ea
Free Shipping & Returns
Key Features
Motor Mounting Type
Cradle Base
Motor Application
General Purpose
Motor Bearings
Ball
RPM Range
1,701-1,800
Nameplate RPM
1,725 RPM
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
048S17D2042
Zoro #
G6102792
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
1 1/2 in
Shaft Dia.
1/2 in
Length Less Shaft
7 1/2 in
Overall Length
9 1/16 in
Description
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.7 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
