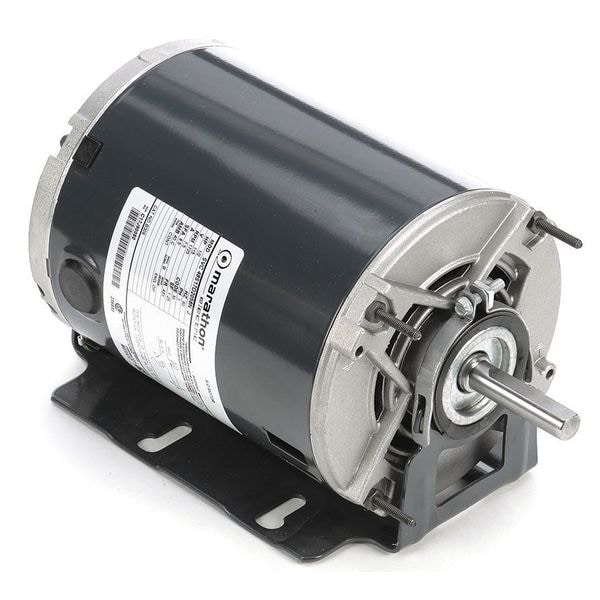

Split-Phase Fan and Blower Motor, 1/2 HP, 48Y Frame, 115V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 048S17D2058

  • Zoro # G0557588

product price:
$
247.99
/ea
Free Shipping & Returns

Key Features

Manufacturers Warranty Length
1 yr
Nameplate RPM
1,725
Length Less Shaft
7 1/2 in
Motor Design
Split-Phase
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048S17D2058
Zoro #
G0557588
UPC #
-
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Length Less Shaft
7 1/2 in
Shaft Dia.
1/2 in
Shaft Length
1 7/8 in
Overall Length
1/2 in
Body Dia.
5 9/16 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in

Details

Item
Fan and Blower Motor
Nameplate RPM
1,725
Motor Design
Split-Phase
Motor Thermal Protection
None
Motor Frame Material
Rolled Steel
HP
1/2
Voltage Compatibility
115V AC
Motor Application
Fan and Blower
Frame
48Y
Full Load Amps
7.5 A
Nominal Efficiency
66 %
Ins. Class
B
Motor Shaft Design
Flat
Motor Mounting Type
Resilient Base
Max. Ambient Temp.
158 Degrees F
Motor Mounting Position
Horizontal
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CW/CCW
Standards
CSA, UL
RPM Range
1,701-1,800
Motor Bearings
Ball
Voltage
115V AC
No. of Speeds
1
Phase
Single
Hz
60
Motor Service Factor
1.25
Weight
18 lb
Duty Cycle
Continuous
Product Type
Fan and Blower Motor
Shaft Design
Flat
Duty
Continuous
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
70 Degrees C
Application
Fan/Blower
Frame Material
Steel
Mounting Position
Horizontal
Drive Type
Belt Drive
Frequency
60 Hz
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.25
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Insulation Class
B
Full Load Current @ 60 Hz
7.5 A
Sub Application
Condenser Fan

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.5 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
