Shop LEESON

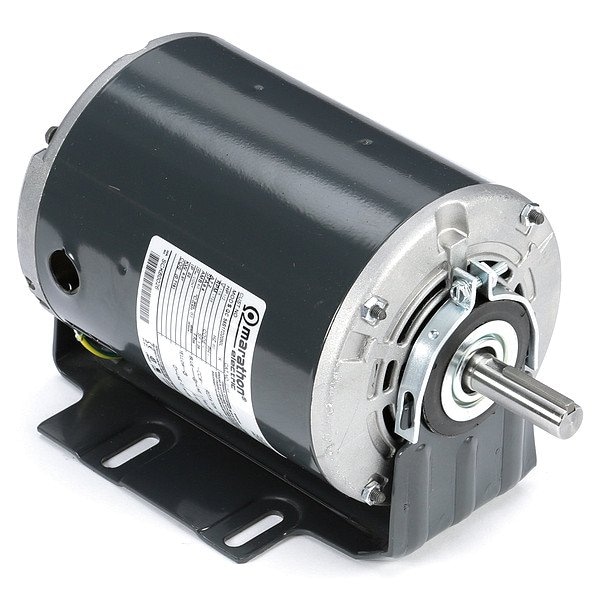

Split-Phase Fan and Blower Motor, 1/2 HP, 56 Frame, 115V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 056S17D2050

  • Zoro # G109977576

product price:
$
297.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
0-1,725
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
056S17D2050
Zoro #
G109977576
UPC #
-
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
0-1,725
Nameplate RPM
1,725
Voltage
115V AC
Frame
56
Motor Mounting Type
Resilient Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115V AC
Phase
Single
Motor Application
General Application
Motor Sub Application
General Purpose
Motor Shaft Rotation
CCW
Ins. Class
B
Standards
CE, CSA, UL
Motor Mounting Position
Horizontal
Full Load Amps
7.2 A
Max. Ambient Temp.
104 Degrees F
Motor Shaft Design
Standard 56 extension
Motor Bearings
Ball
Hz
60 Hz
Nominal Efficiency
66 %
Motor Frame Material
Steel
Duty Cycle
Continuous
Weight
19 lb
Insulation Class
B
Duty
Continuous
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Application
Fan/Blower
Frequency
60 Hz
Mounting Position
All Angle
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.25
Frame Material
Steel
Full Load Current @ 60 Hz
7.2 A
Bearing Type
Ball
Number of Speeds
1
Drive Type
Belt Drive

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.2 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
