  11. Split-Phase Belt Drive Motor, 1/4, 1/12 HP, 56Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM
Shop All Belt Drive Motors
Century

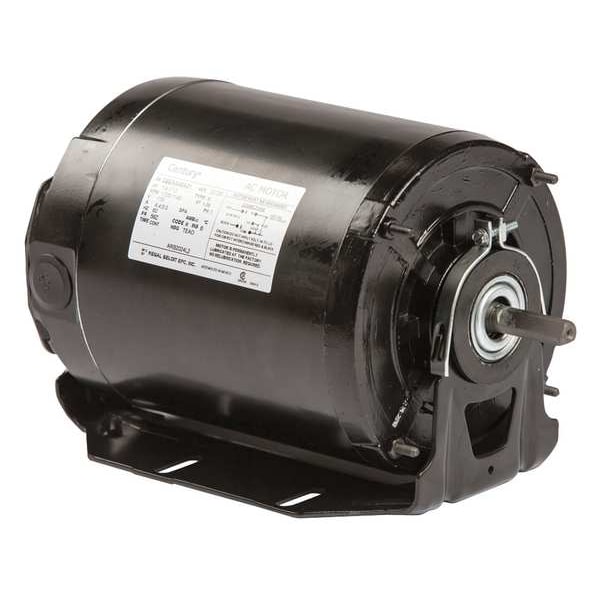

Split-Phase Belt Drive Motor, 1/4, 1/12 HP, 56Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

Hover or click to zoom Tap to zoom
Key Features
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • HP: 1/4, 1/12
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 115V AC
See full product details
$469.58
38% off
$287.03
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Century #ARB2024L2 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • HP: 1/4, 1/12
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 115V AC
  • Frame: 56Z
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: None
  • Motor Service Factor: 1
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Duty: Continuous
  • Motor Bearings: Ball
  • Full Load Amps: 4.4/3.0
  • Standards: CSA
  • Length Less Shaft: 9 3/8 in
  • Motor Frame Material: Steel
  • Resilient Ring Dia.: 2 1/2 in
  • Motor Mounting Position: All Angle
  • Includes: Shaft Adapter 5/8 in dia x 1 1/4 in L
  • Frame Material: Rolled steel
  • Max. Ambient Temp.: 40 Degrees C
  • Hz: 60
  • Footnotes: 26, 262, 307
  • Overall Length: 11 in
  • Mounting Stud Pattern: 4 1/8 in x 4 1/8 in
  • Body Dia.: 6 1/2 in
  • Shaft Length: 1 5/8 in
  • Ins. Class: B
  • Motor Shaft Rotation: CW/CCW
  • Weight: 24 lb
  • Usable @ 208V: No
  • Duty Cycle: Continuous
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4, 1/12 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, 4.4/3.0 Full Load Amps, 56Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
