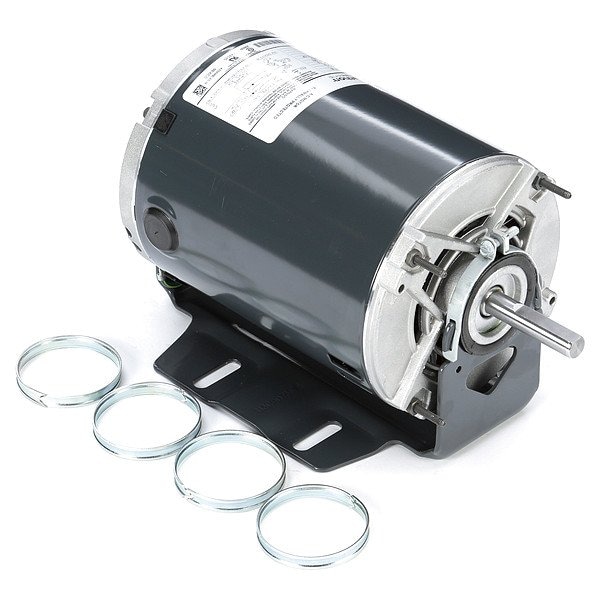

Split-Phase Fan and Blower Motor, 1/8, 1/3 HP, 56Z Frame, 115V AC Voltage, No. of Speeds: 2

  • Mfr # 5KH37PNA569T

  • Zoro # G009977546

product price:
$
359.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/8, 1/3
No. of Speeds
2
RPM Range
0-1,725
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KH37PNA569T
Zoro #
G009977546
UPC #
-
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/8, 1/3
No. of Speeds
2
RPM Range
0-1,725
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56Z
Motor Mounting Type
Resilient Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115V AC
Phase
Single
Motor Application
COMM EQUIP
Motor Sub Application
General Purpose
Nominal Efficiency
58.6 %
Hz
60 Hz
Motor Shaft Design
Single Special Extension with flat
Ins. Class
B
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Standards
CSA, UL
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Full Load Amps
3.8, 6.0 A
Motor Mounting Position
Vertical/Horizontal
Weight
20 lb
Duty Cycle
Continuous
Application
Fan/Blower
Number of Speeds
2
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
6.0/3.8 A
Drive Type
Belt Drive
Product Type
Fan and Blower Motor
Duty
Continuous
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/8 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.0/3.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
