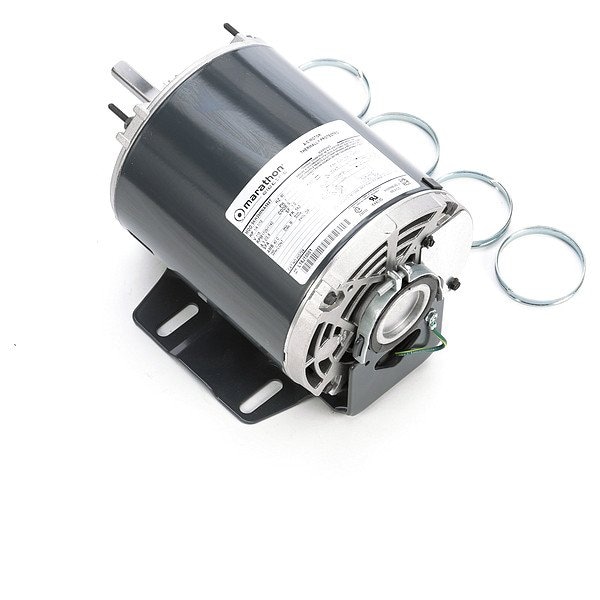

Split-Phase Fan and Blower Motor, 1/4 to 1/12 HP, 56Z Frame, 115V AC Voltage, No. of Speeds: 2
Mfr # 5KH35MNA568T
Zoro # G909977561
product price:Â $312.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/4 to 1/12
No. of Speeds
2
RPM Range
0-1,725
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5KH35MNA568T
Zoro #
G909977561
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Overall Length
10 1/8 in
Length Less Shaft
8 1/8 in
Shaft Length
2 in
Description
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/12 hp, 1/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 5.2/2.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
