Shop MARATHON

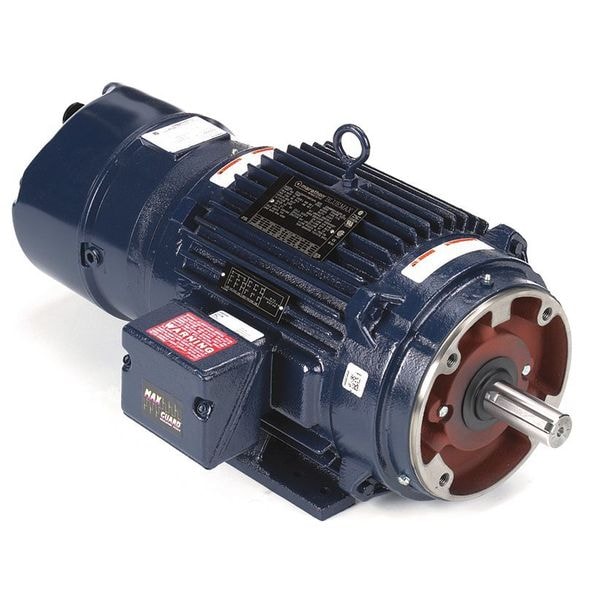

Vector Motor, 3-Phase, 7-1/2HP, 230/460V

  • Mfr # 213THTS8071

  • Zoro # G9923112

product price:  $6,264.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
7 1/2
Torque
35 ft-lb
Nameplate RPM
1,775
Speed Range
2,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213THTS8071
Zoro #
G9923112
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
27 9/16 in
Shaft Length
3 1/8 in
Shaft Dia.
1 3/8 in
Encoder Shaft Dimensions
1 1/8 in x 1 7/16 in
Encoder Shaft Diameter
1 1/8 in
Frame Size
213TC
Shaft Diameter
1 3/8 in
Encoder Shaft Length
1 7/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
7 1/2
Torque
35 ft-lb
Nameplate RPM
1,775
Speed Range
2,000:1
Max. Speed
4,200 RPM
Frame
213TC
Voltage
230/460V AC
Motor Thermal Protection
None
Max. Operating Frequency
120 Hz
RPM Range
1,701-1,800
Motor Bearings
Ball
Duty
Continuous
Frame Material
Cast Iron
Motor Shaft Rotation
CW/CCW
NEMA Design
A
Base
Rigid
Motor Mounting Position
Horizontal
Finish
Enamel
Motor Shaft Design
Keyed
Encoder Acceptable
Yes
Ins. Class
F
Phase
Three
Motor Application
Crane
Ambient Temperature
40 Degrees C
Motor Frame Material
Cast Iron
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Motor Mounting Type
Rigid Base
Full Load Amps
21.0/10.5 A
Encoder Shaft
1-1/8 in x 1-7/16 in
Motor Efficiency Group
Energy Efficient
Standards
CE, UL Recognized
Motor Service Factor
1
Insulation Feature
Class F
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nominal Efficiency
90.2 %
Warranty
3 yr
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
104 Degrees F
Weight
256 lb
Conduit Box Position
F1, F2
Full Load Current @ 60 Hz
21.0/10.5 A
Insulation Class
F
Shaft Design
Keyed
Inverter Rated
Inverter Rated
Efficiency Rating
NEMA Energy Efficient
Maximum Speed
4,200 RPM
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Maximum Operating Frequency
120 Hz
NEMA Design Class
A
Frame Finish
Enamel-Coated
Frequency
60 Hz
Product Type
Vector Motor
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 7 1/2 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 21.0/10.5 A, 213TC Frame, Torque 35 ft-lb, Max. Speed 4,200 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
