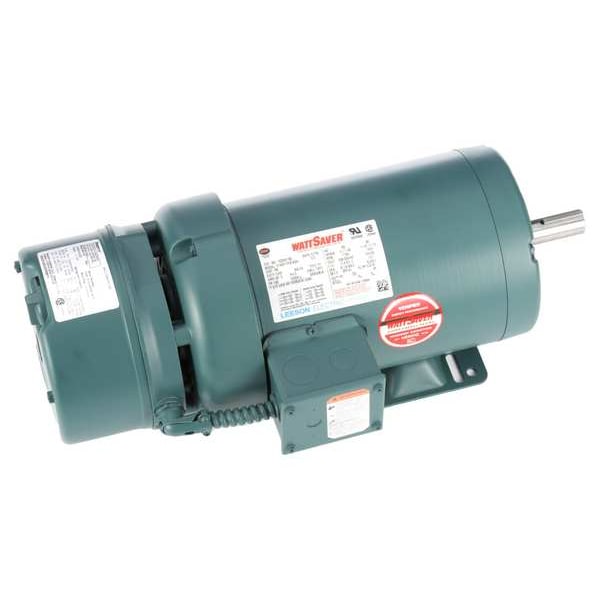

Three-Phase Brake Motor, 2 hp HP, 145T Frame, 208-230/460V AC Voltage, 1,745 RPM Nameplate RPM

  • Mfr # 122247.00

  • Zoro # G302014832

product price:  $1,544.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
2 hp
Nameplate RPM
1,745 RPM
Frame
145T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122247.00
Zoro #
G302014832
UPC #
691720098721
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Manufacturers Warranty Length
18 mo
Length Less Shaft
16 7/16 in
Overall Length
18 5/8 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
145T

Details

Item
Brake Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
2 hp
Nameplate RPM
1,745 RPM
Frame
145T
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Brake Rating
10 ft-lb
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
CSA, UL Recognized
Includes
Key
Bearing Protection
Double Shield
Duty Cycle
Continuous
Hz
60/50 Hz
Motor Bearings
Ball
Inverter Rated
Not Inverter Rated
Motor Thermal Protection
T-Stat
Voltage @ 50Hz
190/380V AC
RPM @ 50Hz
1,435 RPM
Full Load Amps
2.0 A
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Conduit Box Position
F1
Brake Model/Series
56000
No. of Speeds
1
Conduit Box Location
Exterior
Motor Frame Material
Steel
Service Factor @ 50Hz
1.15
Nominal Efficiency
86.5 %
Voltage Compatibility
208-230/460V AC
Phase
Three
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
6.0/3.0 A
Weight
58 lb
Motor Application
General Purpose
Max. Ambient Temp.
40 Degrees C
HP @ 50Hz
1 1/2 hp
Motor Service Factor
1.15
Inverter Rating
Not Inverter Rated
Frequency
60/50 Hz
Bearing Type
Ball
Full Load Current @ 60 Hz
2.0 A
Brake Torque
10 ft-lb
Manufacturers Warranty
18 mo
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
1,435 RPM
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 50 Hz
6.0/3.0 A
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Shaft Design
Keyed
Number of Speeds
1
Product Type
Brake Motor
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Service Factor @ 50 Hz
1.15
Insulation Class
F
Brake Series
56000
Application
General Purpose

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.0 A Full Load Amps, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
