Shop CENTURY

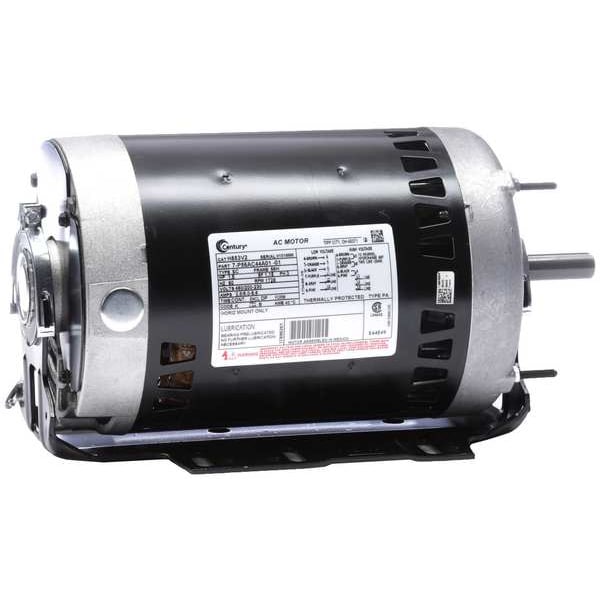

3-Phase Direct Drive Blower Motor, 1 1/2 HP, 56H Frame, 200-230/460V AC Voltage, No. of Speeds: 1

  • Mfr # H853V2
  • Zoro # G903457076
product price:
$
409.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1 1/2
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H853V2
Zoro #
G903457076
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
11 in
Body Dia.
6 1/2 in
Shaft Length
1 15/16 in
Overall Length
12 15/16 in
Frame Size
56H
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Wire Rope Length
12 15/16 in
Length
12 15/16 in

Details

Item
Fan and Blower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1 1/2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
200V AC to 230V AC, 460V AC
Frame
56H
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.15
Voltage Compatibility
200V AC, 230V AC, 460V AC
Phase
Three
Motor Application
Blower; Fan
Motor Sub Application
HVAC/R
Motor Frame Material
Rolled Steel
Duty Cycle
Continuous
Standards
CSA, UL Listed
Motor Shaft Rotation
CW/CCW
Weight
30 lb
Ins. Class
B
Motor Mounting Position
Vertical/Horizontal
Usable @ 208V
Usable at 208V
Max. Ambient Temp.
104 Degrees F
Full Load Amps
2.8/5.0-5.6 A
Motor Shaft Design
Keyed
Duty
Continuous
Usable @ 200V
Yes
Extended Thru-Bolts
Yes
Hz
60 Hz
Motor Bearings
Ball
Drive Type
Belt Drive
Capacitor Required
Capacitor Not Required
Sub Application
General Purpose
Frame Material
Steel
Bearing Type
Ball
Insulation Class
B
Mounting Position
All Angle
Full Load Current @ 60 Hz
2.8/5.0-5.6 A
Frequency
60 Hz
Number of Speeds
1
Wattage
1120 W
Motor Enclosure Type
Open Drip Proof
Application
Fan/Blower
Product Type
Fan and Blower Motor
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.8/5.0-5.6 A Full Load Amps, 56H Frame, Output Watts 1120 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Yes, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
