  6. Three-Phase Brake Motor, 3/4 hp HP, 56C Frame, 208-230/460V AC Voltage, 1,725 RPM Nameplate RPM

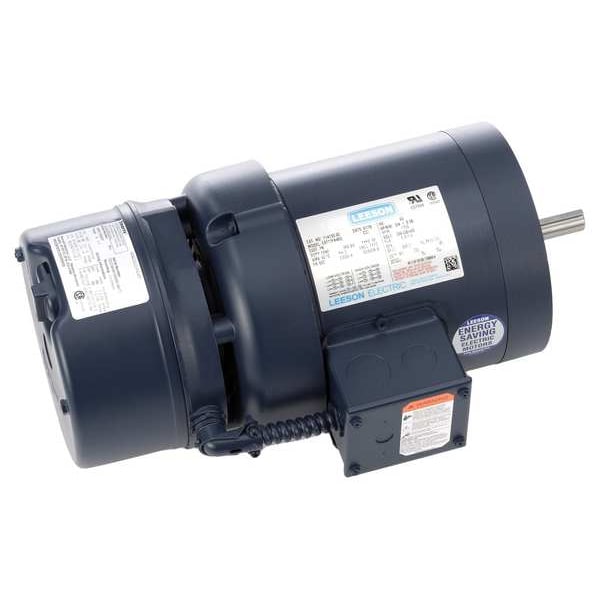

Leeson Three-Phase Brake Motor, 3/4 hp HP, 56C Frame, 208-230/460V AC Voltage, 1,725 RPM Nameplate RPM 114155.00 - main

Three-Phase Brake Motor, 3/4 hp HP, 56C Frame, 208-230/460V AC Voltage, 1,725 RPM Nameplate RPM

  • Mfr # 114155.00

  • Zoro # G602014822

product price:  $918.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
3/4 hp
Nameplate RPM
1,725 RPM
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114155.00
Zoro #
G602014822
UPC #
691720013304
Country of Origin
United States

Dimensions

Length Less Shaft
13 5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
18 mo
Overall Length
15 3/16 in
Shaft Dia.
5/8 in

Details

Item
Brake Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
3/4 hp
Nameplate RPM
1,725 RPM
Frame
56C
Voltage
208-230/460V AC
Motor Mounting Type
C-Face, Rigid Base
Brake Rating
6 ft-lb
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
CSA, UL Recognized
Includes
Key
Conduit Box Location
Exterior
Ins. Class
B
Nominal Efficiency
77 %
Motor Shaft Rotation
CW/CCW
Brake Model/Series
56000
Motor Thermal Protection
None
Duty Cycle
Continuous
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Weight
34 lb
Hz
60 Hz
Voltage Compatibility
208-230/460V AC
Motor Application
General Purpose
Usable @ 208V
Usable at 208V
No. of Speeds
1
Phase
Three
Motor Bearings
Ball
Inverter Rated
Not Inverter Rated
Bearing Protection
Double Shield
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Full Load Amps
1.4 A

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.4 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
