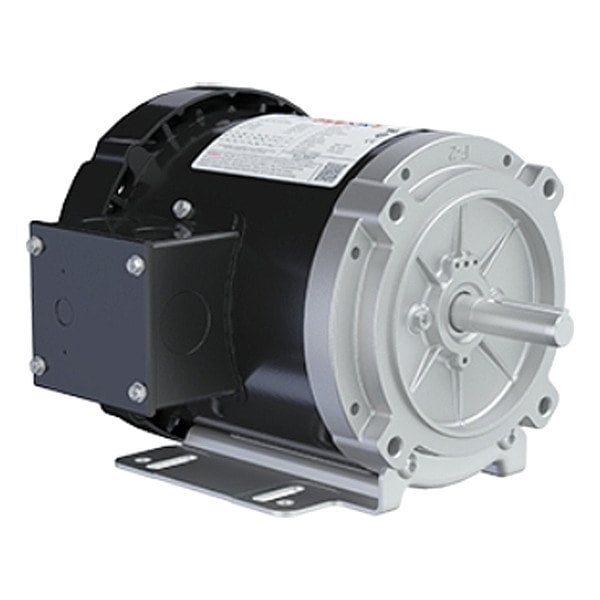

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 575V Voltage, 3,450 Nameplate RPM
Mfr # 056T34F15668
Zoro # G012192110
product price:Â $456.99
/ea
Free Shipping & Returns
Key Features
Nameplate RPM
3,450
Voltage
575V
Motor Mounting Type
Universal
Full Load Amps
1.1 A
Frame
56C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
056T34F15668
Zoro #
G012192110
UPC #
691720115312
Country of Origin
Mexico
Dimensions
Length Less Shaft
8 15/16 in
Overall Length
10 13/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56C
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3,450, Frame 56C, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 1.1 A, Universal Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, Reversible Motor Shaft Rotation, Nominal Efficiency 66 Percent, 3450, CE, CSA Certified, UL Listed
