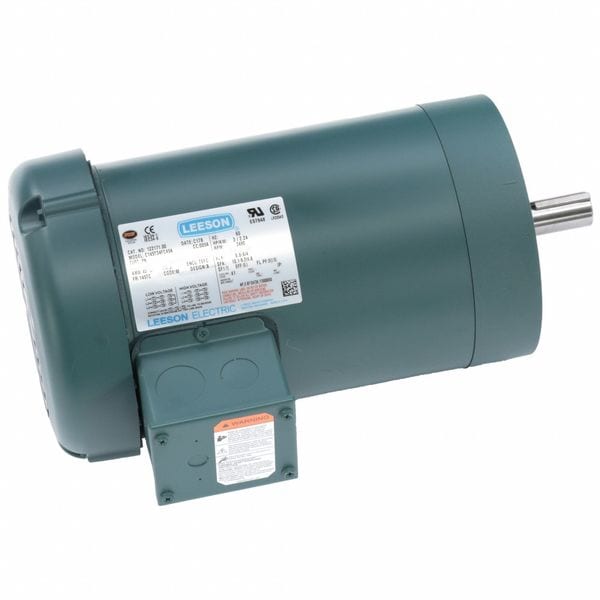

Three-Phase General Purpose Motor, 3 HP, 145TC Frame, 208-230/460V AC Voltage, 3,490 Nameplate RPM

  • Mfr # 122171.00

  • Zoro # G107353914

product price:  $941.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,490
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
8.8-8.0/4.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122171.00
Zoro #
G107353914
UPC #
691720043905
Country of Origin
United States

Dimensions

Overall Length
13 15/16 in
Shaft Dia.
7/8 in
Shaft Diameter
7/8 in
Frame Size
145TC

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3,490
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
8.8-8.0/4.0 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
Over 3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
208-230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
T
Nominal Efficiency
86.5 %
Standards
CSA, UL
Motor Thermal Protection
None
Weight
47 lb
Removable Base
Permanently Lubricated
Duty Cycle
Continuous
NEMA Design
B
Usable @ 208V
Usable at 208V
Bearing Lubrication Type
Permanently Lubricated
Insulation Class
F
Efficiency Rating
Premium Efficiency (IE3)
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
190-220/380/415V AC
NEMA Design Class
B
Product Type
General Purpose Motor
Bearing Type
Ball
Shaft Design
Threaded
Mounting Position
Horizontal
Application
General Purpose
Full Load Current @ 60 Hz
8.8-8.0/4.0 A
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Air-Over
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,450 RPM
Frequency
60 Hz
Frame Material
Steel

Description

General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 3 HP, Nameplate RPM 3,490, Frame 145TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.8-8.0/4.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Over 3,600, CSA, UL

Restrictions

This item has been restricted from sale in the following states: CA
