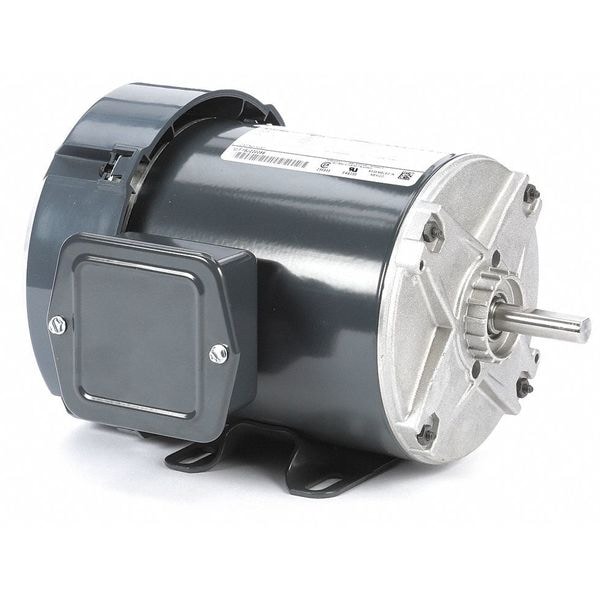

Leeson Three-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM 5K33FN30 - main

Three-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # 5K33FN30

  • Zoro # G5720267

product price:  $268.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.5-1.8/0.90 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5K33FN30
Zoro #
G5720267
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
8 11/16 in
Overall Length
10 3/16 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1/2 in
Frame Size
48

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.5-1.8/0.90 A
Frame
48
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Nominal Efficiency
61 %
Standards
CSA Certified, UL Listed
Inverter Rated
No
Motor Thermal Protection
None
Capacitor Required
No
NEMA Design
B
Weight
16 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Full Load Current @ 60 Hz
1.5-1.8/0.90 A
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
190/380V AC
Mounting Position
All Angle
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Manufacturers Warranty
1 yr
Efficiency Rating
NEMA Standard Efficiency
Application
General Purpose
Nameplate RPM @ 50 Hz
3,450 RPM
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Not Inverter Rated
Number of Speeds
1
Insulation Class
B
Bearing Type
Ball
Frame Material
Steel
Shaft Design
Flat
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 3,450, Frame 48, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.5-1.8/0.90 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 61 Percent, Continuous Duty, 3001-3600
