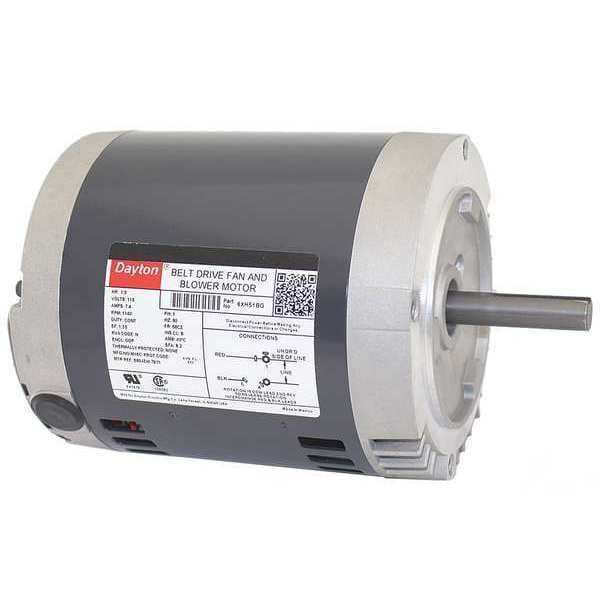

Belt Drive Mtr, SplitPh, ODP, 1/3HP, 1140rpm

  • Mfr # 6XH51BG

  • Zoro # G2616975

product price:
$
591.99
/ea
Free Shipping & Returns

Key Features

Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Includes
Shaft Key
Voltage
115V AC
Full Load Amps
7.4 A
Shaft Dia.
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6XH51BG
Zoro #
G2616975
UPC #
190735373057
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
7 13/16 in
Overall Length
10 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Length
2 7/16 in
Body Dia.
6 1/2 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56CZ

Details

Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Includes
Shaft Key
Item
Belt Drive Motor
Voltage
115V AC
Full Load Amps
7.4 A
Nominal Efficiency
58.5 %
Motor Mounting Type
Face
Duty
Continuous
Nameplate RPM
1,140
RPM Range
1,101-1,200
Motor Shaft Design
Keyed
Motor Design
Split-Phase
Max. Ambient Temp.
104 Degrees F
Phase
Single
No. of Speeds
1
Motor Frame Material
Rolled Steel
Motor Shaft Rotation
CW/CCW
HP
1/3
Motor Enclosure Design
Open Dripproof
Ins. Class
B
Frame
56CZ
Motor Thermal Protection
None
Motor Bearings
Ball
Motor Service Factor
1.35
Hz
60 Hz
Motor Sub Application
Belt Drive Fan/Blower
Frame Material
Steel
Motor Mounting Position
All Angle
Motor Application
HVAC/R
Standards
CSA Certified (258501), UL Recognized (E47479)
Duty Cycle
Continuous
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.35
Drive Type
Belt Drive
Number of Speeds
1
Shaft Design
Keyed
Bearing Type
Ball
Full Load Current @ 60 Hz
7.4 A
Manufacturers Warranty
1 yr
Product Type
Fan and Blower Motor
Insulation Class
B
Application
Fan/Blower
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 7.4 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 2 7/16 in
