Shop DAYTON

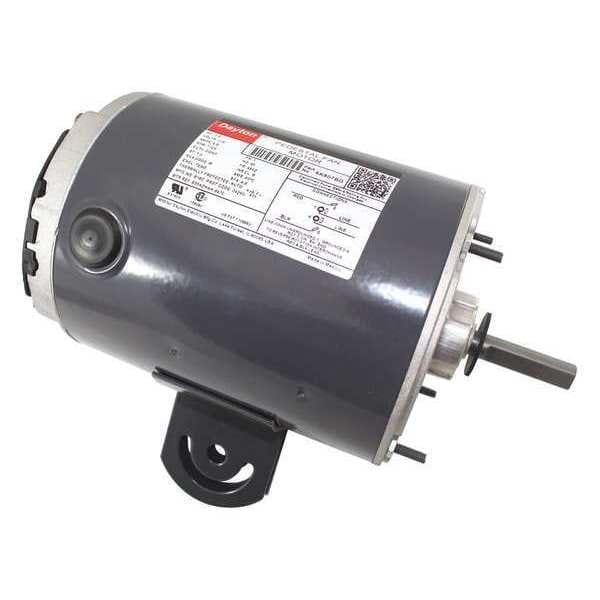

Pedestal Fan Motor, 1/3 hp

  • Mfr # 6K807

  • Zoro # G3322462

product price:  $219.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K807
Zoro #
G3322462
UPC #
190735366462
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 in
Body Dia.
5 5/8 in
Overall Length
10 1/8 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48YZ

Details

Item
Pedestal Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
10 Ft. Cord and Pull Chain Switch
No
Ambient Temperature
40 Degrees C
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Application
Pedestal Fans
Motor Application
HVAC/R
Motor Mounting Type
Yoke
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Motor Service Factor
1
Full Load Amps
4.8 A
Capacitor Required
Capacitor Not Required
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Includes
Shaft Slinger
Hz
60 Hz
Duty
Continuous
Motor Sub Application
Pedestal Fan
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Number of Speeds
1
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Air-Over
Product Type
Pedestal Fan Motor
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Bearing Type
Ball
Sub Application
Pedestal Fan
Full Load Current @ 60 Hz
4.8 A
Frequency
60 Hz
Shaft Design
Flat

Description

Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 1/2 in
