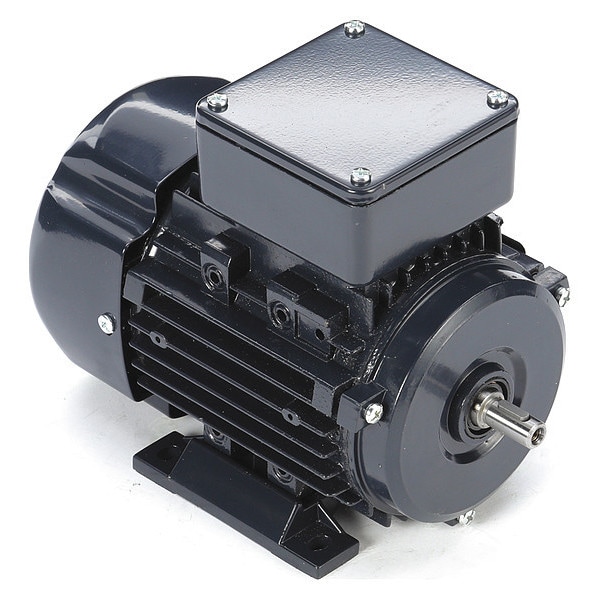

Leeson Three-Phase General Purpose Motor, 1/4 HP, 63 Frame, 230/460V AC Voltage, 1700 rpm Nameplate RPM 063T17FH5326 - main

Three-Phase General Purpose Motor, 1/4 HP, 63 Frame, 230/460V AC Voltage, 1700 rpm Nameplate RPM

  • Mfr # 063T17FH5326

  • Zoro # G5836144

product price:  $282.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1700 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.0/0.50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
063T17FH5326
Zoro #
G5836144
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
194 mm
Overall Length
217 mm
Shaft Dia.
11 mm
Shaft Length
23 mm
Frame Size
63
Shaft Diameter
11 mm

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1700 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.0/0.50 A
Frame
63
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1601-1700
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Aluminum
Motor Mounting Position
Horizontal
Nominal Efficiency
68 %
Standards
CE, CSA, UL Recognized
Motor Thermal Protection
None
Voltage @ 50Hz
230/460
Weight
12 lb
Inverter Rated
Yes
Usable @ 208V
Not Usable at 208V
HP @ 50Hz
1/4 hp
Duty Cycle
Continuous
Full Load Amps @ 50Hz
1.00/0.50 A
Service Factor @ 50Hz
1.15
RPM @ 50Hz
1700 rpm
Usable @ 200V
Not Usable at 200V
Kw
0.18
Product Type
General Purpose Motor
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Nameplate RPM @ 50 Hz
1,185/980 RPM
Nameplate Service Factor @ 50 Hz
1.15
Mounting Position
Horizontal
Insulation Class
F
Full Load Current @ 60 Hz
1.0/0.50 A
Frequency
60/50 Hz
Number of Speeds
1
Full Load Current @ 50 Hz
1.00/0.50 A
Efficiency Rating
NEMA Standard Efficiency
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Nameplate Horsepower @ 50 Hz
1/4 hp
Application
General Purpose

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, 0.18 kW, Nameplate RPM 1700 rpm, Frame 63, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.0/0.50 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1601-1700
