Shop DAYTON

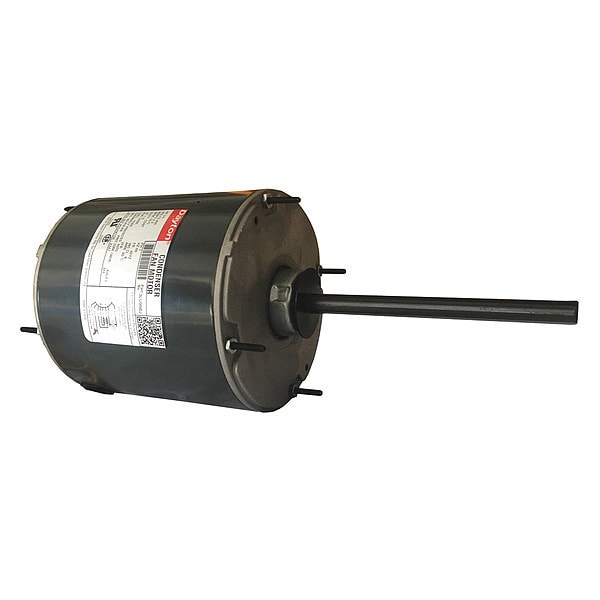

Condenser Fan Motor, 3/4 hp

  • Mfr # 3LU99

  • Zoro # G1071384

product price:  $260.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3LU99
Zoro #
G1071384
UPC #
190735291313
Country of Origin
Multiple

Dimensions

Stud Size
3/4 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
6 3/8 in
Lead Length
30 in
Shaft Length
5 in
Overall Length
10 13/16 in
Mounting Stud Thread Size
3/4"
Body Diameter
5.6 in
Frame Size
48YZ
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Wire Rope Length
10 13/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Nominal Efficiency
68.2 %
Motor Bearings
Ball
Stud Quantity
4
Standards
CSA Certified (258501), UL Recognized (E37403)
Application
Condenser Fan
Motor Service Factor
1
Motor Thermal Protection
Auto
Full Load Amps
2.0 A
Capacitor Required
Capacitor Not Included
Motor Shaft Design
Double-Flat
Nameplate RPM
1,075
Duty
Continuous
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Item
Condenser Fan Motor
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Motor Mounting Position
All Angle
Features
Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Ins. Class
B
Motor Application
HVAC/R
Hz
60 Hz
Max. Ambient Temp.
60 Degrees C
Duty Cycle
Continuous
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Full Load Current @ 60 Hz
2.0 A
Bearing Type
Ball
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Sub Application
Condenser Fan
Mounting Position
Vertical Shaft Up/Shaft Down
Ambient Temperature - Maximum
60 Degrees C
Product Type
Condenser Fan Motor
Number of Speeds
1
Shaft Design
Double Flat
Drive Type
Direct Drive

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 2.0 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 5 in
