Shop CENTURY

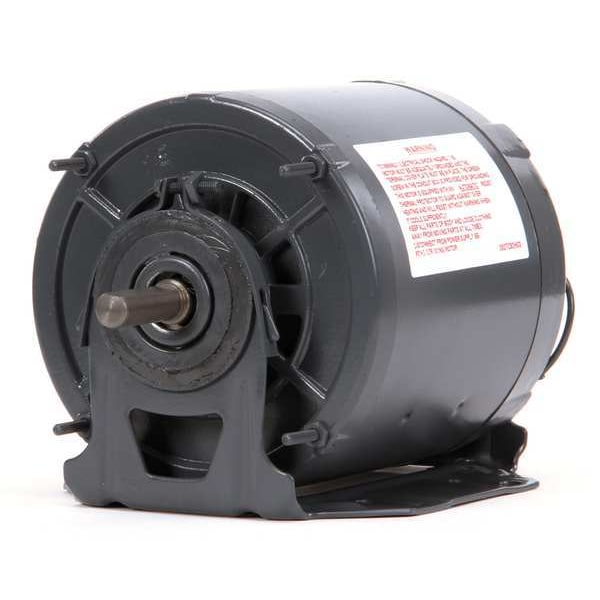

Motor, Sp Ph, 1/6 HP, 1725,115/208-230V, 48Y

  • Mfr # ARB2014L

  • Zoro # G3038305

product price:
$
177.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Shaft Design
Flat
Shaft Length
1 1/2 in
Motor Application
HVAC/R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ARB2014L
Zoro #
G3038305
UPC #
-
Country of Origin
Mexico
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Shaft Design
Flat
Motor Application
HVAC/R
RPM Range
1,701-1,800
Mounting Stud Location
4/Shaft End
Duty
Continuous
Capacitor Required
Capacitor Not Required
Voltage
115/208-230V AC
Motor Sub Application
Direct Drive Fan/Blower
Full Load Amps
2.8/1.4/1.4 A
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Ring to Ring Center
6 3/4 in
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Item
Fan and Blower Motor
Includes
Resilient Base
Nameplate RPM
1,725
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Phase
Single
Motor Service Factor
1
Frame
48Y
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Design
Split-Phase
Application
Fan/Blower
HP
1/6
Motor Mounting Type
Cradle Base
Ins. Class
B
Weight
14 lb
Usable @ 200V
Not Usable at 200V
Mounting Holes
4
Motor Frame Material
Steel
Stud Quantity
4
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Number of Shafts
1
Number of Speeds
1
Mounting
Cradle Base
Wattage
125 W
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
2.8/1.4/1.4 A
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over
Drive Type
Direct Drive
Insulation Class
B
Frame Material
Steel
Bearing Type
Ball
Manufacturers Warranty
1 yr

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 2.8/1.4/1.4 A Full Load Amps, 48Y Frame, Output Watts 125 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
