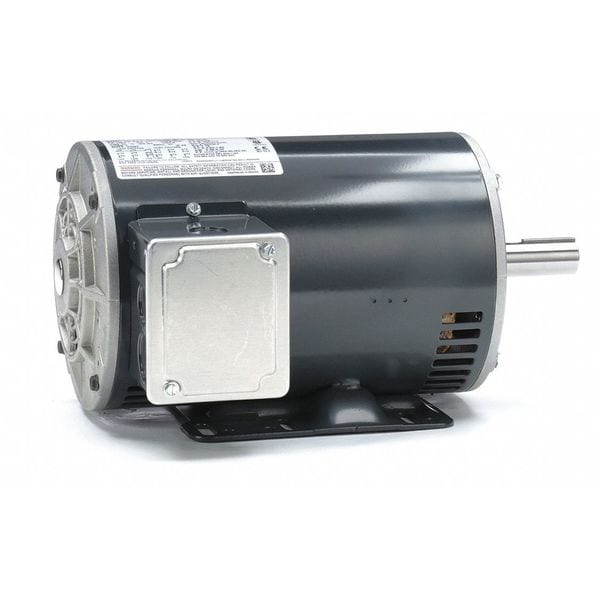

Leeson Three-Phase General Purpose Motor, 3/4 HP, 145T Frame, 230/460V AC Voltage, 850 rpm Nameplate RPM 145TTDR5401 - main

Three-Phase General Purpose Motor, 3/4 HP, 145T Frame, 230/460V AC Voltage, 850 rpm Nameplate RPM

  • Mfr # 145TTDR5401

  • Zoro # G5791082

product price:  $596.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
850 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.0/2.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
145TTDR5401
Zoro #
G5791082
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 11/16 in
Overall Length
13 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
850 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
4.0/2.0 A
Frame
145T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
0-1000
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
72 %
Standards
CE, CSA, UL Recognized
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Usable @ 208V
No
Voltage @ 50Hz
230/460
RPM @ 50Hz
850 rpm
Usable @ 200V
No
Full Load Amps @ 50Hz
4.0/2.0 A
Service Factor @ 50Hz
1.15
Weight
42 lb
Duty Cycle
Continuous
HP @ 50Hz
3/4 hp

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 850 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 0-1000, CE, CSA, UL Recognized
