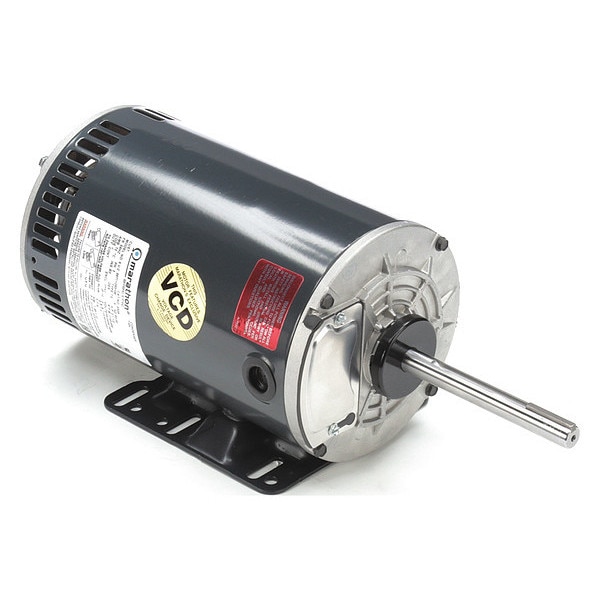

Condenser Fan Motor, 2 hp

  • Mfr # 056T11O5310
  • Zoro # G5720477
product price:
$
618.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11O5310
Zoro #
G5720477
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Body Dia.
6 1/2 in
Length Less Shaft
11 11/16 in
Overall Length
16 11/16 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56HZ
Wire Rope Length
16 11/16 in
Length
16 11/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Hz
50/60 Hz
Ins. Class
H
Duty
Continuous
Nominal Efficiency
81.5 %
Motor Shaft Design
Keyed with Single Flat
Standards
CSA Certified (LR2025), UL Recognized
Full Load Amps
7.2-6.8/3.4 A
Motor Bearings
Ball
Motor Service Factor
1
Application
Condenser Fan
Features
Combination Base With 12 Mounting Holes, Shaft Slinger, Threaded Lead Exit
Full Load Amps @ 50Hz
7.2-6.8/3.4 A
Duty Cycle
Continuous
Motor Frame Material
Steel
Output Watts
1500 W
Conduit Box Position
F1
Service Factor @ 50Hz
1
Voltage @ 50Hz
208-230/460V AC
Weight
47 lb
RPM @ 50Hz
1,140
Conduit Box Location
Exterior
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
2
Mounting
Rigid Base
Full Load Current @ 60 Hz
7.2-6.8/3.4 A
Full Load Current @ 50 Hz
7.2-6.8/3.4 A
Nameplate Horsepower @ 50 Hz
2 hp
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,140 RPM
Wattage
1500 W
Nameplate Service Factor @ 50 Hz
1
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Insulation Class
H
Product Type
Condenser Fan Motor
Number of Speeds
1
Nameplate Voltage @ 50 Hz
208-230/460V AC
Capacitor Required
Capacitor Not Required
Motor Enclosure Type
Open Air Over
Frequency
60/50 Hz
Sub Application
Condenser Fan
Bearing Type
Ball
Ambient Temperature - Maximum
70 Degrees C
Frame Material
Steel
Mounting Position
Horizontal/Vertical Shaft Up

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.2-6.8/3.4 A Full Load Amps, 56HZ Frame, Output Watts 1500 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
