  6. Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1,750 RPM Nameplate RPM

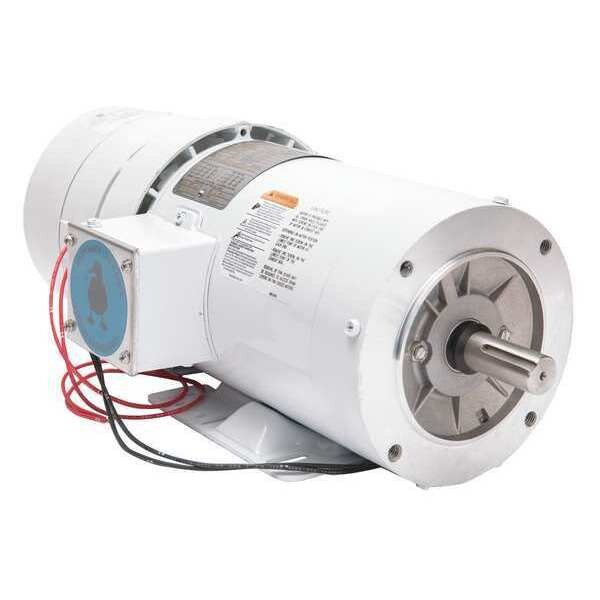

Leeson Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1,750 RPM Nameplate RPM 122194.00 - main

Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1,750 RPM Nameplate RPM

  • Mfr # 122194.00

  • Zoro # G4448057

product price:  $1,973.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 1/2 hp
Nameplate RPM
1,750 RPM
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
122194.00
Zoro #
G4448057
UPC #
691720809143
Country of Origin
United States

Dimensions

Length Less Shaft
16 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Bolt Circle Dia.
5 7/8 in
Overall Length
19 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 1/2 hp
Nameplate RPM
1,750 RPM
Frame
145TC
Voltage
230/460V AC
Motor Mounting Type
C-Face, Rigid Base
Brake Rating
10 ft-lb
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
BISSC, CE, CSA, UL
Includes
10 ft-lb Brake
Phase
Three
Hz
60 Hz
Motor Service Factor
1.15
Nominal Efficiency
86.5 %
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
Frame Material
Epoxy Coated
Motor Frame Material
Steel
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Ins. Class
F
Full Load Amps
4.8/2.4 A
CC Number
CC005A
Motor Thermal Protection
None
No. of Speeds
1
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Weight
54 lb
Usable @ 208V
Usable at 208V
Finish
Epoxy-Coated
Removable Base
No
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1
Includes Brakes
Brake Included

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
