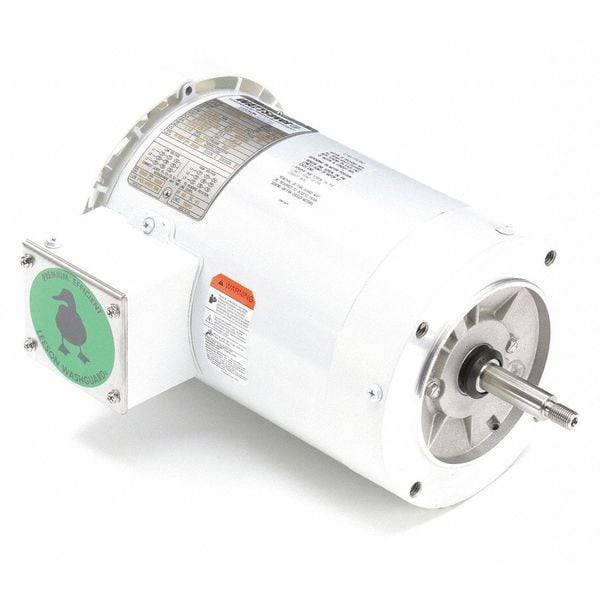

Three-Phase Washdown Motor, 2 hp HP, 56J Frame, 230/460V AC Voltage, 3,490 RPM Nameplate RPM

  • Mfr # 119460.00

  • Zoro # G4448011

product price:
$
785.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
3,490 RPM
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
4.8/2.4 A
Frame
56J
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119460.00
Zoro #
G4448011
UPC #
691720348956
Country of Origin
United States

Dimensions

Length Less Shaft
10 7/16 in
Overall Length
14 3/8 in
Shaft Dia.
5/8 in
Shaft Length
2 7/16 in
Body Dia.
7.38 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Wire Rope Length
14 3/8 in
Length
14 3/8 in

Details

Item
Washdown Motor
HP
2 hp
Nameplate RPM
3,490 RPM
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
4.8/2.4 A
Frame
56J
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Nominal Efficiency
85.5 %
Standards
BISSC, CE, CSA, UL
CC Number
CC005A
Inverter Rated
No
Includes
Splice Kit
Shaft Material
Stainless Steel
Conduit Box
Split Clam Shell with Rubber Gasket
NEMA Design
B
Drain Plugs
(2) in Conduit Box, (4) Each End
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Finish
Painted
Removable Base
No
Full Load Amps @ 50Hz
5.2-4.8/2.4 A
Weight
44 lb
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
