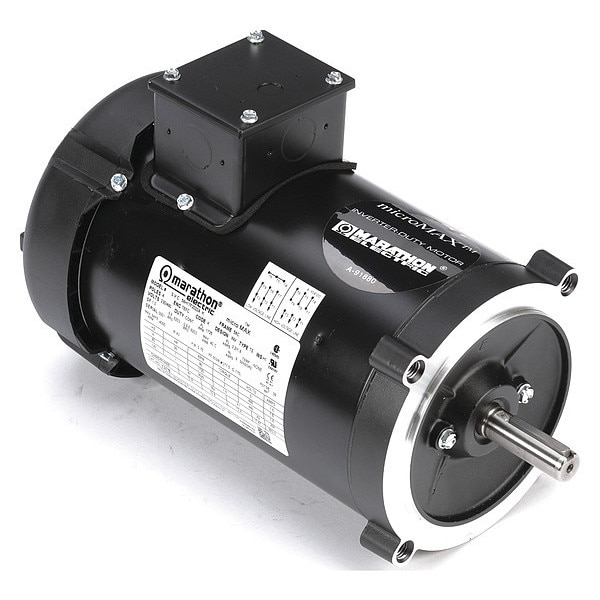

Vector Motor, 1 HP, 3 ft.-lb., 230/460V
Mfr # 056H17F2022
Zoro # G5578097
product price: $521.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
1
Torque
3 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056H17F2022
Zoro #
G5578097
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 1/16 in
Shaft Dia.
5/8 in
Overall Length
12 7/16 in
Length Less Shaft
10 3/8 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Torque 3 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
