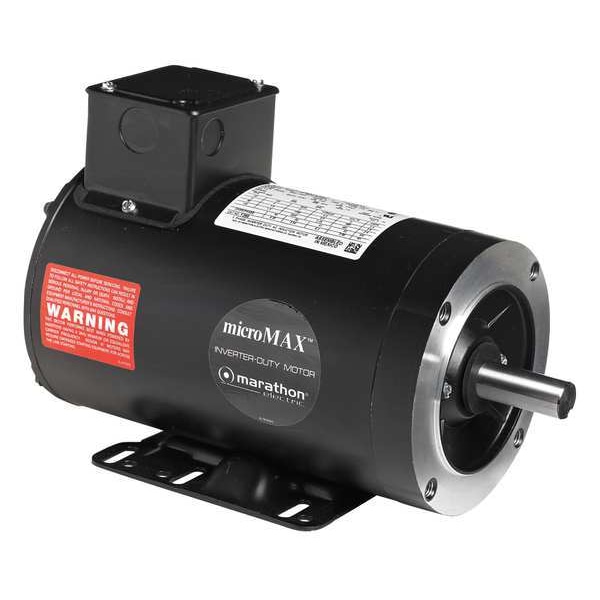

Vector Motor, 6.0 lb-ft, 2 HP, 230/460 V
Mfr # 145THFR5329
Zoro # G2138963
product price:Â $774.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
HP
2
Torque
6 ft-lb
Nameplate RPM
1,740
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
145THFR5329
Zoro #
G2138963
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Overall Length
14 15/16 in
Length Less Shaft
12 13/16 in
Manufacturers Warranty Length
3 Years
Frame Size
145TC
Shaft Diameter
7/8 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Torque 6 ft-lb, Max. Speed 4,000 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
