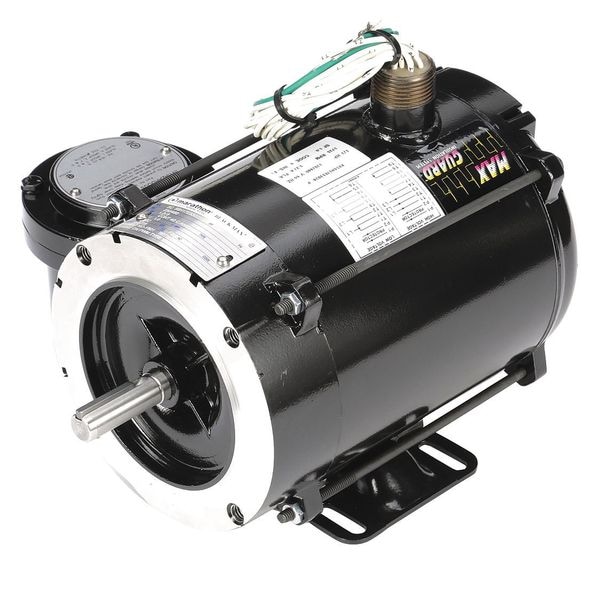

Vector Motor, 1 lb-ft, 1/3 HP, 230/460 V

  • Mfr # 056H17E5302
  • Zoro # G4270524
product price:
$
796.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1/3
Torque
1 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056H17E5302
Zoro #
G4270524
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
12 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Manufacturers Warranty Length
3 Years
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
12 in
Length
12 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
1/3
Torque
1 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
Max. Speed
3,600 RPM
Frame
56C
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Full Load Amps
1.2/0.6 A
Motor Shaft Rotation
CW/CCW
Standards
UL Listed And CSA Certified
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Finish
Black
Encoder Acceptable
No
Ambient Temperature
40 Degrees C
Duty
Continuous
Motor Efficiency Group
Standard Efficient
RPM Range
1,701-1,800
Motor Service Factor
1
Warranty
3 yr
Nominal Efficiency
74 %
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Phase
Three
Motor Bearings
Ball
Max. Operating Frequency
120 Hz
Ins. Class
F
Insulation Feature
MAX GUARD Class F
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Hz
60 Hz
Encoder Shaft
None
Motor Application
Crane
Base
Rigid
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Frame Material
Steel
NEMA Design
A
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
26 lb
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Max. Ambient Temp.
104 Degrees F
Conduit Box Position
F3
Inverter Rated
Inverter Rated
Maximum Speed
3,600 RPM
Product Type
Vector Motor
Frequency
60 Hz
NEMA Design Class
A
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Insulation Class
F
Maximum Operating Frequency
120 Hz
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
NEMA Standard Efficiency
Full Load Current @ 60 Hz
1.2/0.6 A

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.2/0.6 A, 56C Frame, Torque 1 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
