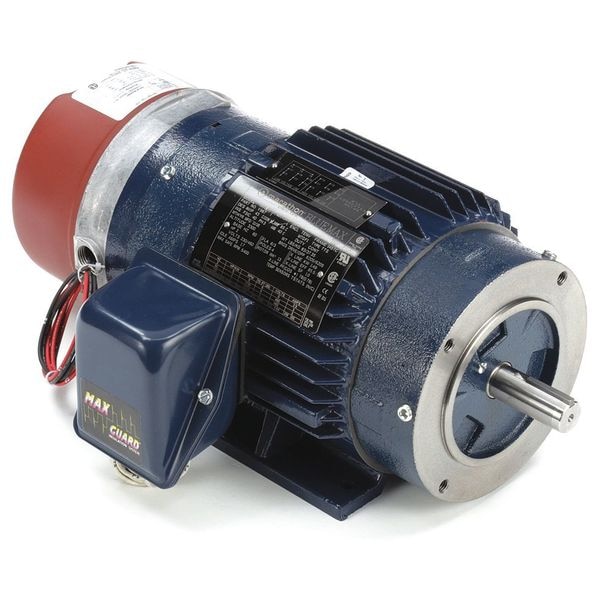

Vector Motor, 3-Phase, 2HP, 230/460V

  • Mfr # 145THTN8043

  • Zoro # G5644441

product price:  $2,444.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2
Torque
10 ft-lb
Nameplate RPM
1,750
Speed Range
2,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145THTN8043
Zoro #
G5644441
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Overall Length
18 in
Encoder Shaft Dimensions
5/8 in x 2 1/16 in
Frame Size
145TC
Shaft Diameter
7/8 in
Encoder Shaft Length
2 1/16 in
Encoder Shaft Diameter
5/8 in
Wire Rope Length
18 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
2
Torque
10 ft-lb
Nameplate RPM
1,750
Speed Range
2,000:1
Max. Speed
5,400 RPM
Frame
145TC
Voltage
230/460V AC
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Duty
Continuous
Max. Operating Frequency
120 Hz
Insulation Feature
Class F
Ins. Class
F
Motor Mounting Type
Rigid Base
Hz
60 Hz
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Encoder Acceptable
Yes
Phase
Three
NEMA Design
A
Motor Shaft Rotation
CW/CCW
Frame Material
Cast Iron
Full Load Amps
6.0/3.0 A
Warranty
3 yr
Finish
Enamel
RPM Range
1,701-1,800
Base
Rigid
Encoder Shaft
5/8 in x 2-1/16 in
Motor Application
Crane
Ambient Temperature
40 Degrees C
Nominal Efficiency
85.5 %
Motor Service Factor
1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Efficiency Group
Energy Efficient
Motor Bearings
Ball
Standards
CE, UL Recognized
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
104 Degrees F
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
83 lb
Conduit Box Position
F1, F2
Maximum Operating Frequency
120 Hz
Inverter Rated
Inverter Rated
Insulation Class
F
Full Load Current @ 60 Hz
6.0/3.0 A
Frame Finish
Enamel-Coated
NEMA Design Class
A
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Ambient Temperature - Maximum
40 Degrees C
Product Type
Vector Motor
Maximum Speed
5,400 RPM
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
NEMA Energy Efficient
Bearing Type
Ball

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.0/3.0 A, 145TC Frame, Torque 10 ft-lb, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
