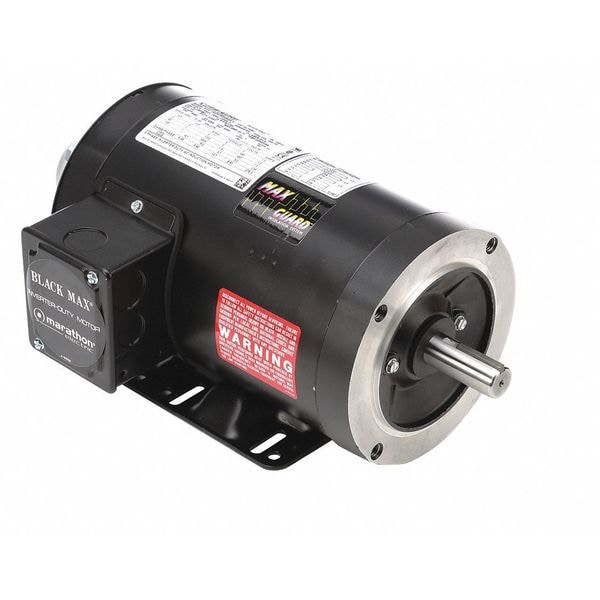

Vector Motor, 3.0 lb-ft, 1 HP, 230/460 V
Mfr # 143THTR5326
Zoro # G2887656
product price:Â
$
665.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
HP
1
Torque
3 ft-lb
Nameplate RPM
1,750
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 143THTR5326
- Zoro #
- G2887656
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 7/8 in
- Overall Length
- 15 1/16 in
- Shaft Length
- 2 1/8 in
- Manufacturers Warranty Length
- 3 Years
- Encoder Shaft Dimensions
- 5/8 in x 1 3/4 in
- Length Less Shaft
- 12 15/16 in
- Encoder Shaft Diameter
- 5/8 in
- Shaft Diameter
- 7/8 in
- Encoder Shaft Length
- 1 3/4 in
- Frame Size
- 143TC
- Wire Rope Length
- 15 1/16 in
- Length
- 15 1/16 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Torque 3 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
