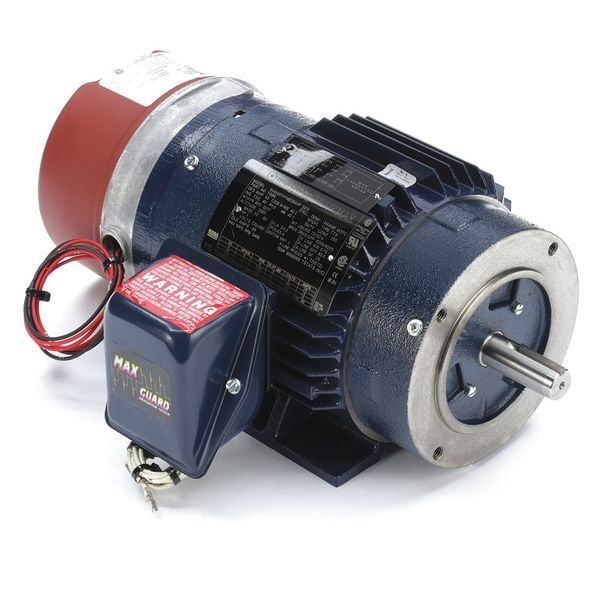

Vector Motor, 3-Phase, 1HP, 230/460V
Mfr # 143THTN8036
Zoro # G5705244
product price: $2,078.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
1
Torque
6 ft-lb
Nameplate RPM
1,756
Speed Range
2,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
143THTN8036
Zoro #
G5705244
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
7/8 in
Overall Length
17 in
Shaft Length
2 1/8 in
Encoder Shaft Dimensions
5/8 in x 2 1/16 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,756, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Torque 6 ft-lb, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
