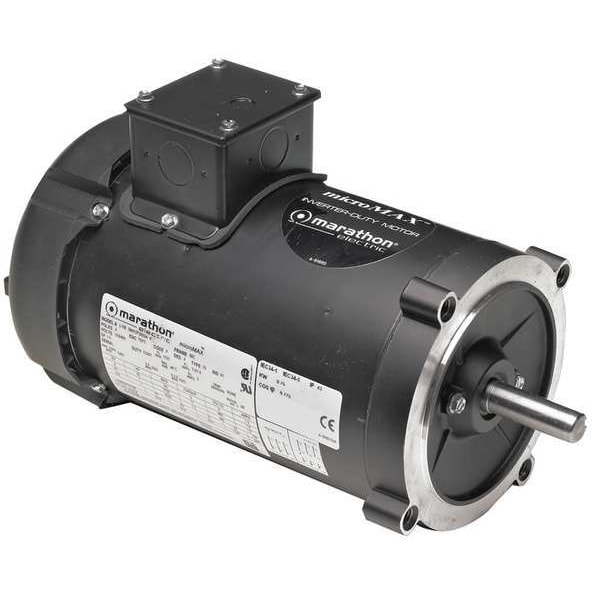

Vector Motor, 3/4 HP, 2.28 ft-lb., 230/460V
Mfr # 056H17F2018
Zoro # G5650775
product price:Â $410.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
3/4
Torque
2.28 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
056H17F2018
Zoro #
G5650775
UPC #
-
Country of Origin
Multiple
Dimensions
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Overall Length
11 3/16 in
Length Less Shaft
9 1/8 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56C Frame, Torque 2.28 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
