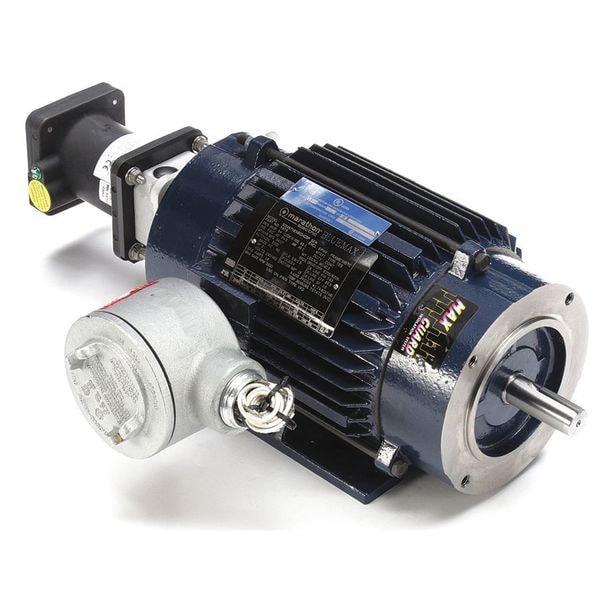

Vector Motor, 2 HP, 3600 rpm, 230/460V

  • Mfr # 145THEN8034
  • Zoro # G5833195
product price:
$
7,143.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2
Nameplate RPM
1,750
Speed Range
2,000:1
Max. Speed
3,600 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145THEN8034
Zoro #
G5833195
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
21 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Shaft Diameter
7/8 in
Frame Size
145TC
Wire Rope Length
21 7/16 in
Length
21 7/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
2
Nameplate RPM
1,750
Speed Range
2,000:1
Max. Speed
3,600 RPM
Frame
145TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Iron
Full Load Amps
5.8/2.9 A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Service Factor
1
Motor Efficiency Group
Energy Efficient
Warranty
3 yr
Max. Operating Frequency
90 Hz
Frame Material
Cast Iron
Encoder Shaft
5/8 in
Motor Shaft Design
Keyed
NEMA Design
A
Base
Rigid
Insulation Feature
Max Guard
Hz
60 Hz
Motor Bearings
Ball
Ambient Temperature
40 Degrees C
Motor Mounting Position
Horizontal
Nominal Efficiency
85.5 %
Standards
CL I GR C&D, CL II GR F&G, CSA CERTIFIED (LR47504), UL LISTED(E12044)
Motor Mounting Type
Rigid Base
Encoder Acceptable
Yes
Ins. Class
F
Phase
Three
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
RPM Range
1,701-1,800
Duty
Continuous
Motor Application
Crane
Finish
Blue
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
No. of Speeds
1
Weight
90 lb
Conduit Box Position
F1, F2
Efficiency Rating
NEMA Standard Efficiency
NEMA Design Class
A
Sub Application
Severe Duty
Inverter Rated
Inverter Rated
Nameplate Service Factor @ 60 Hz
1
Maximum Operating Frequency
90 Hz
Frequency
60 Hz
Maximum Speed
3,600 RPM
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Product Type
Vector Motor
Shaft Design
Keyed
Bearing Type
Ball
Insulation Class
F
Full Load Current @ 60 Hz
5.8/2.9 A
Ambient Temperature - Maximum
40 Degrees C

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Max. Speed 3,600 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
