  11. Washdown Brake Motor, 1 HP, 1725 RPM

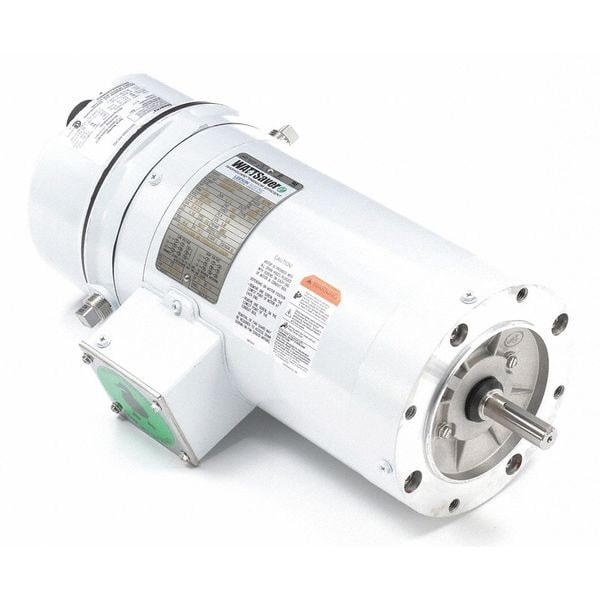

Leeson Washdown Brake Motor, 1 HP, 1725 RPM 119485.00 - main

Washdown Brake Motor, 1 HP, 1725 RPM

  • Mfr # 119485.00

  • Zoro # G4242150

product price: $1,327.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119485.00
Zoro #
G4242150
UPC #
691720345528
Country of Origin
United States

Dimensions

Length Less Shaft
15 7/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6.5 in
Overall Length
17 1/2 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Frame Material
Epoxy Coated
Motor Application
General Purpose
Motor Service Factor
1.15
Full Load Amps
2.8/1.4 A
Includes
6 ft-lb Brake
Nameplate RPM
1,750 RPM
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Ins. Class
F
CC Number
CC005A
Standards
BISSC, CE, CSA, UL
Motor Mounting Type
C-Face
Nominal Efficiency
85.5 %
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Full Load Amps @ 50Hz
3.0-2.8/1.4 A
Usable @ 208V
Usable at 208V
Removable Base
No
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Finish
Painted
Weight
45 lb
Endshield Material
Aluminum
Series
Washguard
Includes Brakes
Brake Included
Conduit Box Position
F1
Brake Rating
6 ft-lb

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
