Shop LEESON

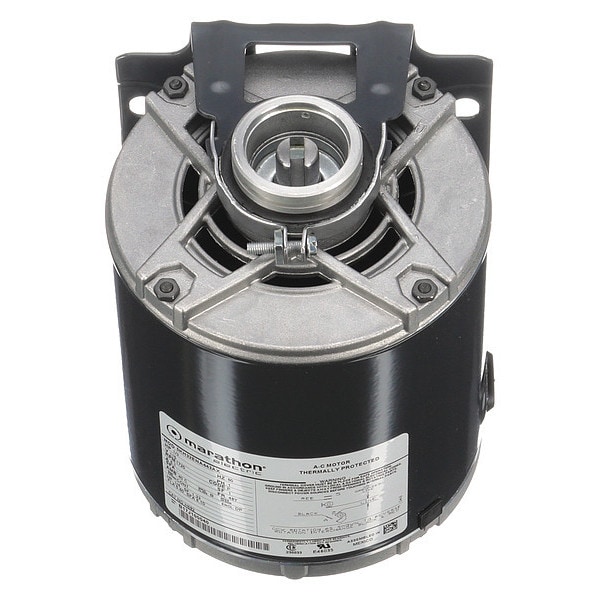

Pump Motor, Split Ph, 1/3 HP, 1725,115V, 48Y

  • Mfr # 5KH32ENA443X

  • Zoro # G0853377

product price:  $222.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
HP
1/3
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KH32ENA443X
Zoro #
G0853377
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
1/4 in
Overall Length
7 11/16 in
Shaft Dia.
5/8 in
Length Less Shaft
7 1/2 in
Body Dia.
5.6 in
Height
5 13/16 in
Shaft Dia. (In.)
5/8
Shaft Diameter
5/8 in
Frame Size
48Y
Body Diameter
5.6 in

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
HP
1/3
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
Frame
48Y
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Bearings
Ball
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
Full Load Amps
6.1 A
Standards
CSA, UL
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Hz
60 Hz
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
Phase
Single
Ins. Class
B
Motor Sub Application
Carbonator Pump
Motor Frame Material
Steel
Nominal Efficiency
51.8 %
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Weight
13 lb
Bearing Type
Ball
Full Load Current @ 60 Hz
6.1 A
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Product Type
Pump Motor
Number of Wires
7
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Sub Application
Carbonator Pump
Frequency
60 Hz
Insulation Class
B
Number of Speeds
1
Application
Pump

Description

Carbonator Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 6.1, Height 5 13/16 in, HP 1/3, Ins. Class B, Length Less Shaft 7 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
