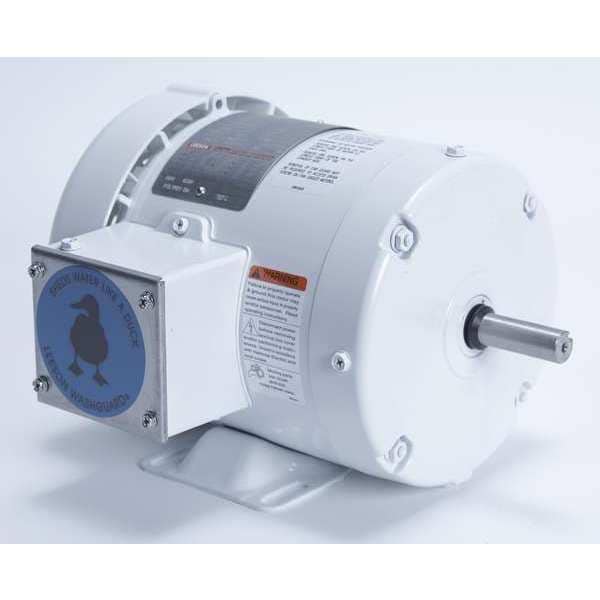

Leeson Washdown Motor, 1/2 HP, Rigid Base, CWSE 112427.00 - main

Washdown Motor, 1/2 HP, Rigid Base, CWSE

  • Mfr # 112427.00

  • Zoro # G4609258

product price: $478.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112427.00
Zoro #
G4609258
UPC #
691720010723
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
8 9/16 in
Body Dia.
7.38 in
Overall Length
10 1/2 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Application
General Purpose
Hz
60 Hz
Full Load Amps
2.0/1.0 A
Ins. Class
F
Nominal Efficiency
74 %
Max. Ambient Temp.
40 Degrees C
Frame Material
Rolled steel
Motor Bearings
Ball
Nameplate RPM
1,725 RPM
Motor Mounting Type
Rigid Base
Standards
BISSC, CE, CSA, UL
NEMA Design
B
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Finish
Epoxy-Coated
Duty Cycle
Continuous
No. of Speeds
1
Weight
27 lb
Removable Base
No
Series
Washguard
Endshield Material
Aluminum
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.0/1.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
