  11. Washdown Motor, 2 HP, 3-Phase, 145TC Frame

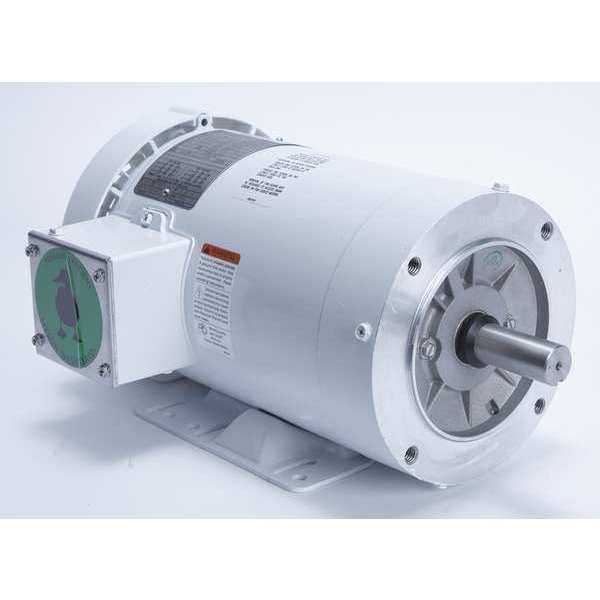

Leeson Washdown Motor, 2 HP, 3-Phase, 145TC Frame 121868.00 - main

Washdown Motor, 2 HP, 3-Phase, 145TC Frame

  • Mfr # 121868.00

  • Zoro # G4609075

product price: $1,037.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
121868.00
Zoro #
G4609075
UPC #
691720989319
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 15/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Body Dia.
7.38 in
Overall Length
14 7/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
1,745 RPM
Nominal Efficiency
86.5 %
Frame Material
Rolled steel
CC Number
CC005A
Full Load Amps
5.8/2.9 A
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
C-Face, Rigid Base
Hz
60/50 Hz
Application
General Purpose
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Application
General Purpose
Ins. Class
F
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Motor Mounting Position
Horizontal
Standards
BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
Motor Shaft Design
Keyed
Weight
48 lb
Conduit Box Location
Exterior
Voltage @ 50Hz
460V AC
Full Load Amps @ 50Hz
5.8/2.9 A
HP @ 50Hz
2 hp
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,745 RPM
Service Factor @ 50Hz
1.15
Finish
Epoxy-Coated
Duty Cycle
Continuous
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
