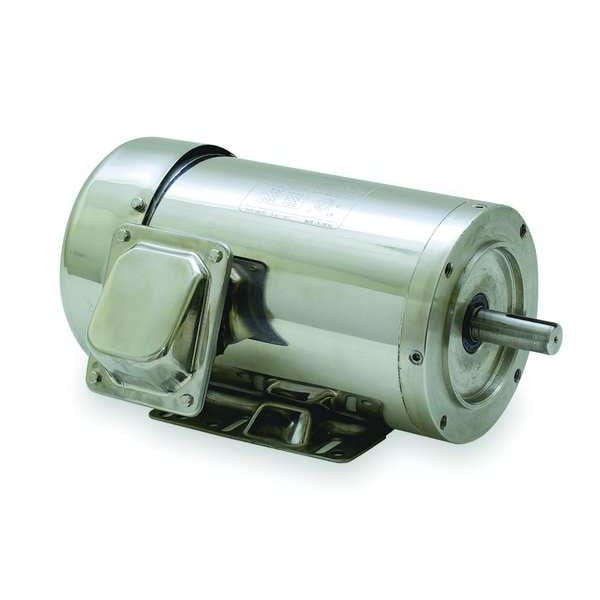

Washdown Motor, 3 Ph, TEFC, 3 HP, 3510 rpm

DAYTON| Zoro #: G0361277| Mfr #: 2RKY6

$1457.01 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0361277 Mfr #: 2RKY6
Motor Service Factor: 1.15NEMA Design: B
Phase: 3Motor Application: Washdown
Motor Shaft Design: KeyedMotor Enclosure Design: Totally Enclosed Fan-Cooled
Motor Thermal Protection: NoneMax. Ambient Temp.: 40 Degrees C
Motor Bearings: BallDuty: Continuous
Item: Washdown MotorIns. Class: F
Motor Design: 3-PhaseMotor Shaft Rotation: CW/CCW
Voltage: 230/460Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Conduit Box: SplitDrain Plugs: 4 per Endshield
Frame Material: Stainless SteelShaft Material: Stainless Steel
Shaft Length: 2-3/4"Overall Length: 16-15/16"
Nominal Efficiency: 86.5%Motor Mounting Type: Face/Base
Hz: 60Length Less Shaft: 13-11/16"
Footnotes: 3Shaft Dia.: 1-1/8"
Body Dia.: 9"Nameplate RPM: 3510
Frame: 182TCHP: 3
Country of Origin (subject to change): China

Product Description

Washdown Motor, 3-Phase, 3 HP, 3510 Nameplate RPM, Voltage 208-230/460, Phase 3, 182TC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 9.5-8.0/4.0, 60 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 16-15/16 In., Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In., Body Dia. 9 In., Length Less Shaft 13-11/16 In., Continuous Duty, Frame Material Stainless Steel
