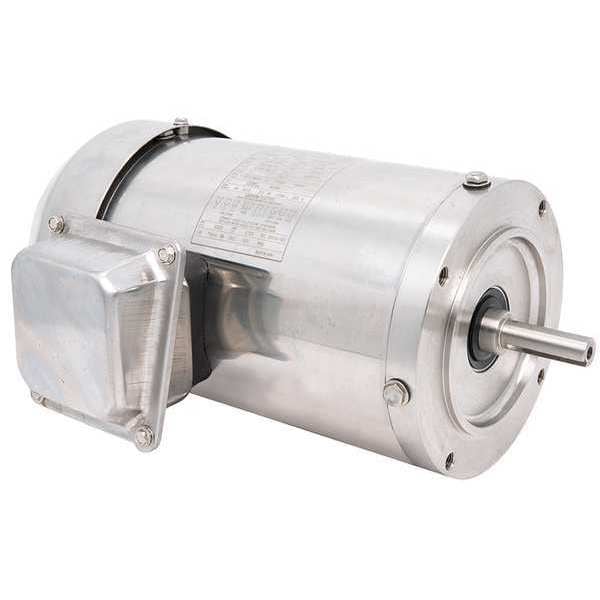

Leeson Washdown Motor, 2 HP, 3450 RPM 191562.00 - main

Washdown Motor, 2 HP, 3450 RPM

  • Mfr # 191562.00

  • Zoro # G4842857

product price: $1,699.00
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56HC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
191562.00
Zoro #
G4842857
UPC #
691720308301
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
11 7/8 in
Overall Length
13 3/4 in
Body Dia.
6.5 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56HC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
3,450 RPM
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
86.6 %
Hz
60/50 Hz
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
CC Number
CC005A
Motor Service Factor
1.15
Frame Material
Stainless Steel
Full Load Amps
5.0/2.5 A
Motor Bearings
Ball
Standards
BISSC Approved, CE, CSA Certified, UL Recognized
Motor Mounting Position
Horizontal
NEMA Design
B
Shaft Material
Stainless Steel
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Shaft Design
Keyed
No. of Speeds
1
Weight
49 lb
HP @ 50Hz
2 hp
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
5.8-5.4/2.5 A
Service Factor @ 50Hz
1.15
Voltage @ 50Hz
460V AC
Conduit Box Location
Exterior
RPM @ 50Hz
3,450 RPM
Finish
Unfinished
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Series
Washguard
Inverter Rating
20:1
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.0/2.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
