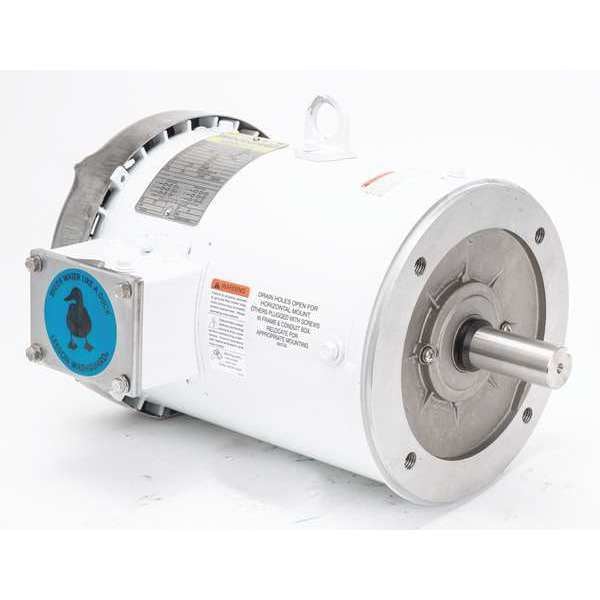

Washdown Motor, 3 HP, 182TC Frame, CWSE

  • Zoro #: G4884936
  • Mfr #: 132439.00
$757.85
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Design: 3-Phase
  • Length Less Shaft: 11 13/16 in
See full product details
This item ships free.

Leeson #132439.00 Specifications

  • Zoro #: G4884936
  • Mfr #: 132439.00
Max. Ambient Temp.: 40 Degrees C Motor Design: 3-Phase
Length Less Shaft: 11 13/16 in Motor Bearings: Ball
HP: 3 Hz: 60
Nameplate RPM: 1,770 Voltage: 208-230/460V AC
Frame: 182TC CC Number: CC005A
Item: Washdown Brake Motor Motor Enclosure Design: Totally Enclosed Fan-Cooled
Voltage Compatibility: 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC Frame Material: Rolled steel
Shaft Dia.: 1 1/8 in Motor Frame Material: Steel
Ins. Class: F RPM Range: 1,701-1,800
Motor Service Factor: 1.15 Motor Application: Washdown
Shaft Length: 2 3/4 in Application: General Purpose
Phase: Three Motor Thermal Protection: None
Motor Shaft Rotation: CWSE Motor Mounting Type: Round Base
Full Load Amps: 8.4-7.8/3.9 Nominal Efficiency: 89.5 %
NEMA Design: B Overall Length: 14 1/2 in
Green Certification or Other Recognition: NEMA Premium(R) Rated Standards: BISSC, CE, CSA, UL
Motor Mounting Position: Horizontal Body Dia.: 8.4 in
No. of Speeds: 1 Usable @ 208V: Yes
Bolt Circle Dia.: 7 1/4 in Removable Base: No
Finish: Painted Duty Cycle: Continuous
Usable @ 200V: No Weight: 78 lb
Manufacturers Warranty Length: 1 yr Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.4-7.8/3.9, 182TC Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Round Base
