  11. Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

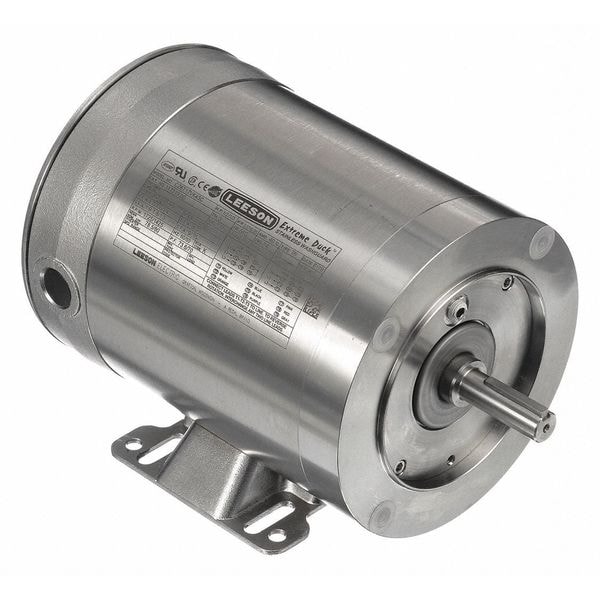

Leeson Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm 117119.00 - main

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

  • Mfr # 117119.00

  • Zoro # G1485294

product price: $1,297.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
117119.00
Zoro #
G1485294
UPC #
691720366301
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6.56 in
Shaft Length
1 7/8 in
Overall Length
11 in
Length Less Shaft
9 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Service Factor
1.15
Drain Plugs
None
NEMA Design
B
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Nameplate RPM
1,725 RPM
Motor Shaft Design
Keyed
Hz
60/50 Hz
Full Load Amps
1.6/0.8 A
Inverter Rated
Inverter Rated
Motor Application
General Purpose
Ins. Class
F
Shaft Material
Stainless Steel
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Standards
BISSC Approved, CSA Certified, UL Recognized
Application
Chemical Processing
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
Motor Bearings
Ball
Endshields
Stainless steel
Nominal Efficiency
78.5 %
Frame Material
Stainless Steel
Footnotes
8, 11
Includes
Base, Bearing Carrier Cover, Conduit Box Cover Endshields, Frame
Motor Mounting Type
C-Face, Rigid Base
Motor Mounting Position
Horizontal
Weight
44 lb
RPM @ 50Hz
1,725 RPM
Service Factor @ 50Hz
1.15
No. of Speeds
1
HP @ 50Hz
1/2 hp
Full Load Amps @ 50Hz
1.7-1.6/0.80 A
Endshield Material
Stainless Steel
Usable @ 208V
Usable at 208V
Voltage @ 50Hz
460V AC
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Location
Exterior
Finish
Unfinished
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
