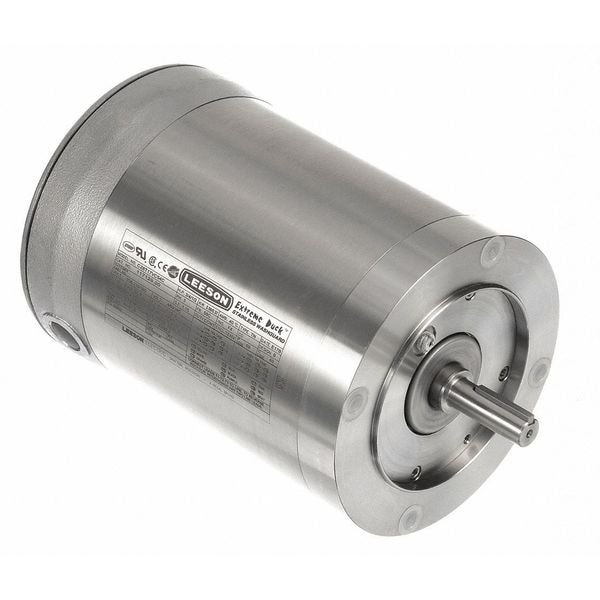

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm
$643.50 /ea
This item ships free. Details.Standard ground shipping.
Details:
Drain Plugs: NoneVoltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460NEMA Design: BWashdown Motor, 3-Phase, 3/4 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.4-2.3/1.15, 60/50 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-1/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-9/16 In., Length Less Shaft 9-3/8 In., Continuous Duty, Frame Material Stainless Steel
Specifications
| Zoro #: G1876436 Mfr #: 117129.00 | |
| Drain Plugs: None | Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 |
| NEMA Design: B | Hz: 60/50 |
| Ins. Class: F | Frame Material: Stainless Steel |
| Max. Ambient Temp.: 40 Degrees C | Overall Length: 11-1/4" |
| Footnotes: 8, 11 | Frame: 56c |
| Voltage: 208-230/460 | Shaft Length: 1-7/8" |
| HP: 3/4 | Conduit Box: Oversized Stainless Steel BICB and Threaded Cover with O Ring |
| Standards: UL Recognized (E57948), CSA Certified (LR33543), CSA Energy Efficiency Verification Program (EEV 78720-1), BISSC (769) | Length Less Shaft: 9-3/8" |
| Full Load Amps: 2.4-2.3/1.15 | Inverter Rated: Yes |
| Motor Service Factor: 1.15 | Nominal Efficiency: 80.0% |
| Motor Shaft Design: Keyed | Nameplate RPM: 1725 |
| Body Dia.: 6-9/16" | RPM Range: 1701-1800 |
| Shaft Dia.: 5/8" | Motor Application: Washdown |
| Shaft Material: 303 Stainless Steel | Motor Mounting Type: Face |
| Phase: 3 | Includes: Frame, Base, Conduit Box Cover Endshields and Bearing Carrier Cover |
| Endshields: Stainless steel | Motor Thermal Protection: None |
| Motor Enclosure Design: Totally Enclosed Nonventilated | Application: Chemical Processing |
| Item: Washdown Motor | Motor Design: 3-Phase |
| Motor Bearings: Ball | Motor Shaft Rotation: CW/CCW |
| Duty: Continuous | Country of Origin (subject to change): United States |
Description
Washdown Motor, 3-Phase, 3/4 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.4-2.3/1.15, 60/50 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-1/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-9/16 In., Length Less Shaft 9-3/8 In., Continuous Duty, Frame Material Stainless Steel
