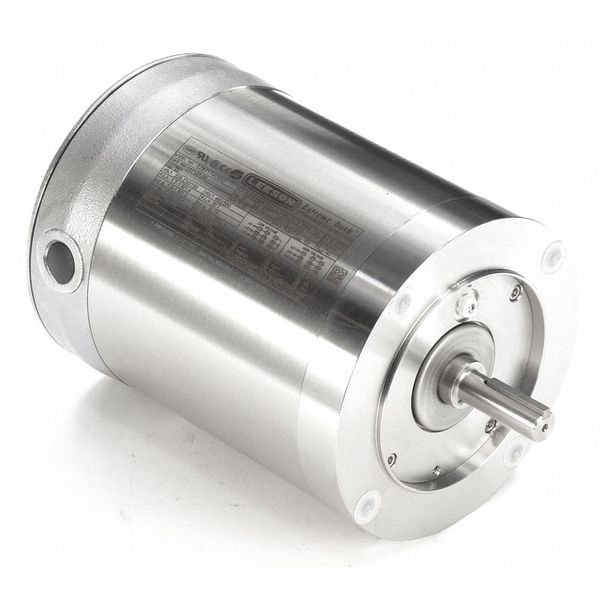

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

LEESON| Zoro #: G2041146| Mfr #: 117127.00

$702.00 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2041146 Mfr #: 117127.00
Duty: ContinuousVoltage: 208-230/460
Motor Enclosure Design: Totally Enclosed NonventilatedMotor Thermal Protection: None
Max. Ambient Temp.: 40 Degrees CFrame: 56c
Motor Shaft Design: KeyedMotor Design: 3-Phase
Standards: UL Recognized (E57948), CSA Certified (LR33543), CSA Energy Efficiency Verification Program (EEV 78720-1), BISSC (769)Motor Bearings: Ball
Motor Application: WashdownPhase: 3
Motor Service Factor: 1.15NEMA Design: B
Endshields: Stainless steelShaft Length: 1-7/8"
Conduit Box: Oversized Stainless Steel BICB and Threaded Cover with O RingIns. Class: F
Hz: 60/50Application: Chemical Processing
Body Dia.: 6-9/16"Shaft Dia.: 5/8"
Frame Material: Stainless SteelVoltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Shaft Material: 303 Stainless SteelIncludes: Frame, Base, Conduit Box Cover Endshields and Bearing Carrier Cover
Inverter Rated: YesItem: Washdown Motor
Drain Plugs: NoneMotor Shaft Rotation: CW/CCW
Nameplate RPM: 1725HP: 1/2
Full Load Amps: 1.7-1.6/0.8Motor Mounting Type: Face
Length Less Shaft: 8-7/8"RPM Range: 1701-1800
Overall Length: 10-3/4"Nominal Efficiency: 78.5%
Footnotes: 8, 11Country of Origin (subject to change): United States

Product Description

Washdown Motor, 3-Phase, 1/2 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 1.7-1.6/0.8, 60/50 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 10-3/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-9/16 In., Length Less Shaft 8-7/8 In., Continuous Duty, Frame Material Stainless Steel
