  11. Washdown Motor, 3/4 HP, 180VDC

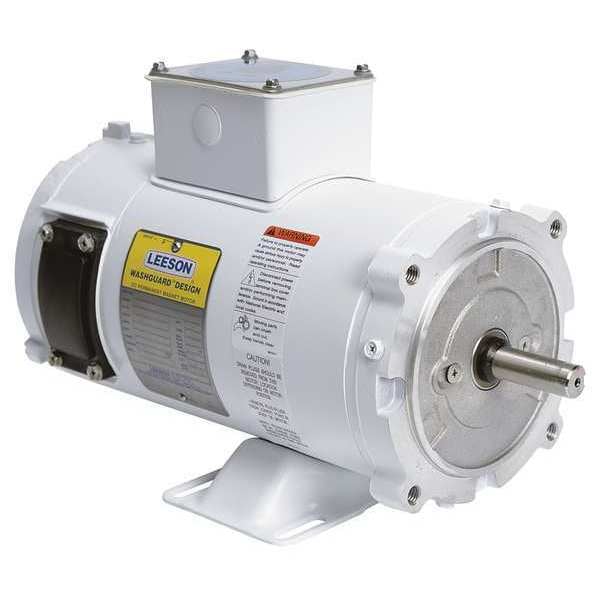

Leeson Washdown Motor, 3/4 HP, 180VDC 108229.00 - main

Washdown Motor, 3/4 HP, 180VDC

  • Mfr # 108229.00

  • Zoro # G4241837

product price: $855.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Voltage
180V DC
Nameplate RPM
1,750
Shaft Dia.
5/8 in
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
108229.00
Zoro #
G4241837
UPC #
691720006818
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
12 3/16 in
Body Dia.
5.63 in
Overall Length
14 1/8 in
Shaft Length
2 1/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
DC Washdown Motor
HP
3/4
Voltage
180V DC
Nameplate RPM
1,750
Frame
56C
Full Load Amps
3.7 A
Phase
Single
RPM Range
1,701-1,800
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Application
Washdown
Rotation
CW/CCW
Motor Design
Permanent Magnet DC
Max. Ambient Temp.
40 Degrees C
Standards
CE, CSA, UL
Ins. Class
F
Voltage Compatibility
180V DC
Motor Mounting Type
Face/Base
Motor Bearings
Ball
Motor Service Factor
1
Usable @ 208V
No
Nominal Efficiency
85 %
Motor Shaft Rotation
CCW, CW
Endshield Material
303 Stainless Steel
Conduit Box Location
Exterior
Weight
42 lb
Shaft Material
Stainless Steel
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
No
Finish
White Epoxy Paint
Conduit Box Position
F3
Series
Washguard

Description

DC Motor,3/4 HP,1750,56C,180V
