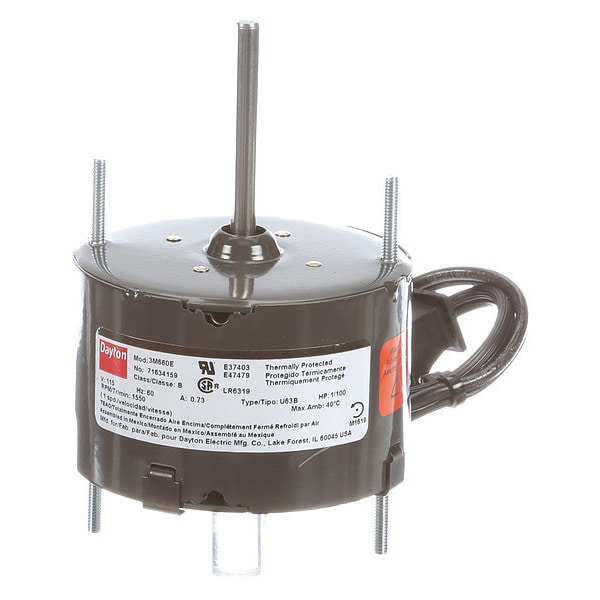

Dayton HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 71634159M - main

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71634159M

  • Zoro # G2318565

product price:  $72.89
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/100
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
71634159M
Zoro #
G2318565
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Length Less Shaft
3 1/4 in
Cord Length
10 in
Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Overall Length
4 13/32 in
Body Diameter
3.3 in
Shaft Diameter
1/4 in
Frame Size
3.3

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/100
RPM Range
1,501-1,600
Motor Design
Shaded Pole
Motor Shaft Design
Flat
Number of Shafts
1
Frame
3.3
Motor Service Factor
1
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Standards
CSA Certified, UL Recognized
Motor Application
HVAC/R
Hz
60 Hz
No. of Speeds
1
Duty
Continuous
Phase
Single
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Direct Drive Fan/Blower
Footnotes
7
Ins. Class
B
Includes
Cordset, Plug
Full Load Amps
0.6 A
Motor Shaft Rotation
CCWSE
Mounting Stud Location
2/Both Ends
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Ring/Stud
Motor Bearings
Sleeve
Mounting Pattern
2-7/8
Plug Type
2 Prong Non-Polarized
Stud/Base Mtg. Pattern
2-7/8 in
Item
HVAC Motor
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Type
OEM Replacement
Mounting
Stud
Frequency
60 Hz
Insulation Class
B
Sub Application
General Purpose
Shaft Design
Flat
Full Load Current @ 60 Hz
0.60 A
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Drive Type
Direct Drive
Wattage
7.4 W
Motor Enclosure Type
Totally Enclosed Air-Over
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
