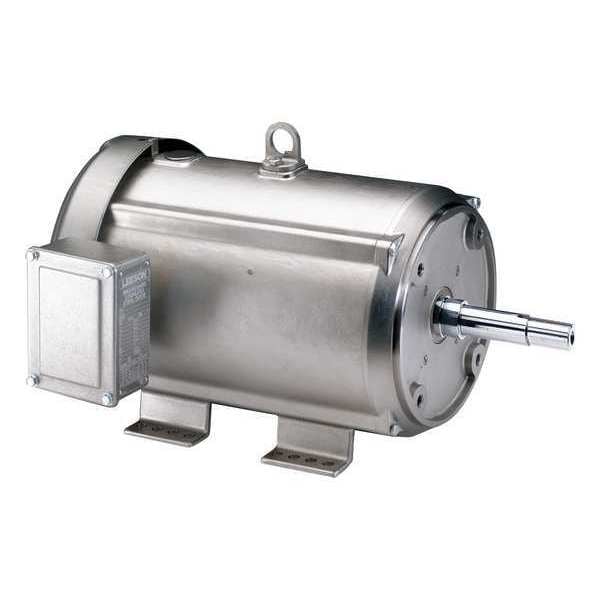

Washdown Motor, 3HP, 182JM Frame, 16-1/4"L

  • Zoro #: G0123549
  • Mfr #: 132450.00

$1,380.12

  • Motor Service Factor: 1.15
  • Voltage: 230/460
  • Frame: 182JM
See full product details
  • This item ships free.
  • Shipping & Returns
  • Sign up for Zmail and get 15% off your first order

Leeson #132450.00 Specifications

  • Zoro #: G0123549
  • Mfr #: 132450.00
Motor Service Factor: 1.15 Voltage: 230/460
Frame: 182JM Shaft Dia.: 7/8"
Endshields: Stainless steel HP: 3
Item: Washdown Close Coupled Pump Motor Length Less Shaft: 12"
Includes: Removable Hydrophobic Breathers In Opposite Shaft Endbell Motor Application: Washdown
Inverter Rated: Yes Ins. Class: F
Motor Thermal Protection: None Shaft Length: 4-1/4"
Motor Shaft Rotation: CWSE Standards: UL (E49747), CSA (LR2025)
NEMA Design: B Drain Plugs: None
Frame Material: Stainless Steel RPM Range: 1701-1800
Body Dia.: 8-25/64" Overall Length: 16-1/4"
Conduit Box: Oversized Stainless Steel BICB and Threaded Cover with O Ring Voltage Compatibility: 460, 230/460, 220-230/460
Duty: Continuous Phase: 3
Application: Washguard Nameplate RPM: 1770
Full Load Amps: 7.8/3.9 Motor Design: 3-Phase
Motor Enclosure Design: Totally Enclosed Fan-Cooled Motor Mounting Type: Face/Base
Hz: 60/50 Motor Shaft Design: Keyed and Drilled On Center
Motor Frame Material: Stainless Steel Max. Ambient Temp.: 40 Degrees C
Nominal Efficiency: 89.5% CC Number: CC005A
Motor Bearings: Ball Motor Mounting Position: Horizontal
Shaft Material: 303 Stainless Steel Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Washdown Close Coupled Pump Motor, 3-Phase, 3 HP, 1770 Nameplate RPM, Voltage 230/460, Phase 3, 182JM Frame, Totally Enclosed Fan-Cooled, Full Load Amps 7.8/3.9, 60/50 Hz, Horizontal Motor Mounting Position, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CWSE Motor Shaft Rotation, Overall Length 16-1/4 In., Shaft Dia. 7/8 In., Shaft Length 4-1/4 In., Body Dia. 8-25/64 In., Length Less Shaft 12 In., Continuous Duty
