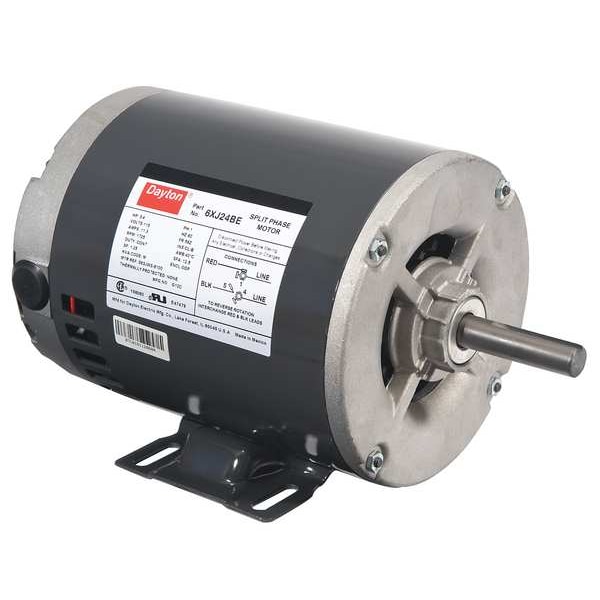

GP Mtr, Split Ph, ODP, 3/4 HP, 1725 rpm, 56Z

DAYTON| Zoro #: G2041611| Mfr #: 6XJ24

$150.66 /ea

This item ships free. Details.Standard ground shipping.
Details:
Motor Mounting Type: Rigid Base
RPM Range: 1701-1800
Overall Length: 11-1/4"
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2041611 Mfr #: 6XJ24
Motor Mounting Type: Rigid BaseRPM Range: 1701-1800
Overall Length: 11-1/4"HP: 3/4
Nameplate RPM: 1725Shaft Length: 2-1/4"
RPM Group: 1701-1800Motor Service Factor: 1.25
Motor Application: General ApplicationNominal Efficiency: 63.6%
Motor Shaft Rotation: CW/CCWMax. Ambient Temp.: 40 Degrees C
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Frame Material: Rolled steel
Length Less Shaft: 9"Phase: 1
Motor Efficiency Group: Item: General Purpose Motor
No. of Speeds: 1Ins. Class: B
Frame: 56ZDuty: Continuous
Motor Bearings: BallShaft Dia.: 5/8"
Motor Design: Split-PhaseStandards: UL (E47479), CSA (156060)
Motor Enclosure Design: Open DripproofManufacturers Warranty Length: 1 yr.
Motor Shaft Design: KeyedVoltage: 115
Full Load Amps: 11.3Motor Thermal Protection: None
Hz: 60Country of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Open Dripproof, 3/4 HP, Nameplate RPM 1725, 56Z Frame, Voltage 115, 60 Hz, 1 Phase, 11.3 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Thermal Protection None, Ins. Class B, 1.25 Motor Service Factor, Ball Motor Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-1/4 In., Motor Shaft Design Keyed
