  11. Washdown Motor, 7-1/2 HP, Face/Base, CWSE

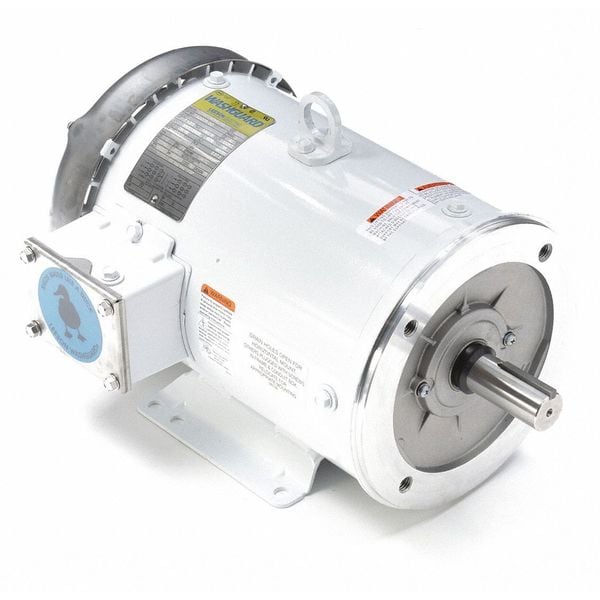

Leeson Washdown Motor, 7-1/2 HP, Face/Base, CWSE 132205.00 - main

Washdown Motor, 7-1/2 HP, Face/Base, CWSE

  • Mfr # 132205.00

  • Zoro # G4609039

product price: $1,907.85
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
184TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
132205.00
Zoro #
G4609039
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Length Less Shaft
13 5/16 in
Shaft Length
2 5/8 in
Overall Length
16 in
Body Dia.
8.38 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
7 1/4 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
184TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Hz
60/50 Hz
Nominal Efficiency
89.5 %
Motor Bearings
Ball
Motor Mounting Type
C-Face, Rigid Base
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Full Load Amps
17.6/8.8 A
Application
General Purpose
Frame Material
Rolled steel
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.15
Nameplate RPM
3,500 RPM
CC Number
CC005A
Motor Application
General Purpose
NEMA Design
A
Motor Shaft Design
Keyed
Green Certification or Other Recognition
NEMA Premium(R) Rated
Standards
BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
Motor Mounting Position
Horizontal
Inverter Rated
Inverter Rated
Conduit Box Location
Exterior
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Finish
Epoxy-Coated
No. of Speeds
1
Weight
101 lb
Usable @ 200V
Usable at 200V
Endshield Material
Aluminum
Inverter Rating
10:1
Series
Washguard
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 17.6/8.8 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
