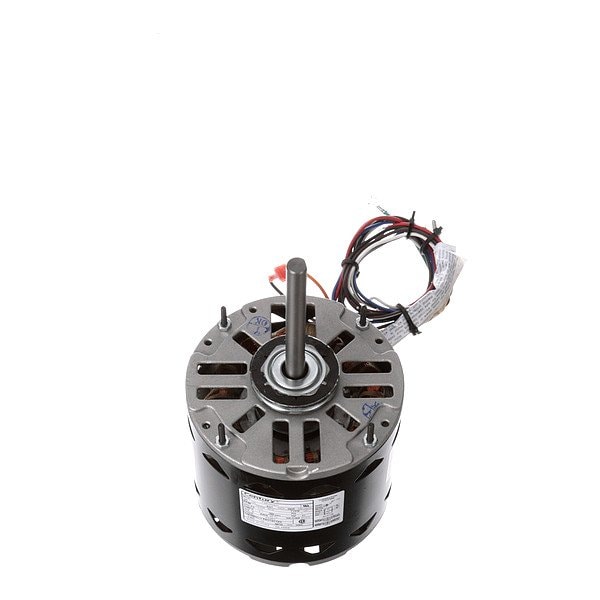

Motor, PSC, 1/2 HP, 1075 RPM, 115V, 48Y, OAO

CENTURY| Zoro #: G0995443| Mfr #: DL1056

$91.65 /ea

This item ships free. Details.Standard ground shipping.
Details:
Ins. Class: B
Voltage: 115
Motor Mounting Type: Stud
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0995443 Mfr #: DL1056
Ins. Class: BVoltage: 115
Motor Mounting Type: StudPhase: 1
Stud Size: #8-32Capacitor Required: 2MDV7
Resilient Ring Dia.: 2-1/4"Frame: 48Y
Motor Thermal Protection: AutoMotor Application: HVAC/R
HP: 1/2Item: Direct Drive Blower Motor
Motor Mounting Position: All AngleApplication: Blowers, Fans and Air Circulators
Motor Shaft Rotation: CW/CCWMotor Shaft Design: Flat
Nameplate RPM: 1075Duty: Continuous
No. of Speeds: 3Motor Service Factor: 1.00
Motor Enclosure Design: Open Air-OverBody Dia.: 5-5/8"
Max. Ambient Temp.: 40 Degrees CRPM Range: 1001-1100
Hz: 60Motor Bearings: Sleeve
Shaft Dia.: 1/2"Length Less Shaft: 6"
Shaft Length: 4"Ring to Ring Center: 5-9/16"
Mounting Stud Pattern: 3-5/8" x 3-5/8"Motor Sub Application: Direct Drive Fan/Blower
Motor Design: Permanent Split CapacitorVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Full Load Amps: 6.5Standards: UL Recognized, CSA Certified
Country of Origin (subject to change): China

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/2 HP, 1075 Nameplate RPM, Voltage 115, 6.5 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 6 In., Shaft Dia. 1/2 In., Shaft Length 4 In.
