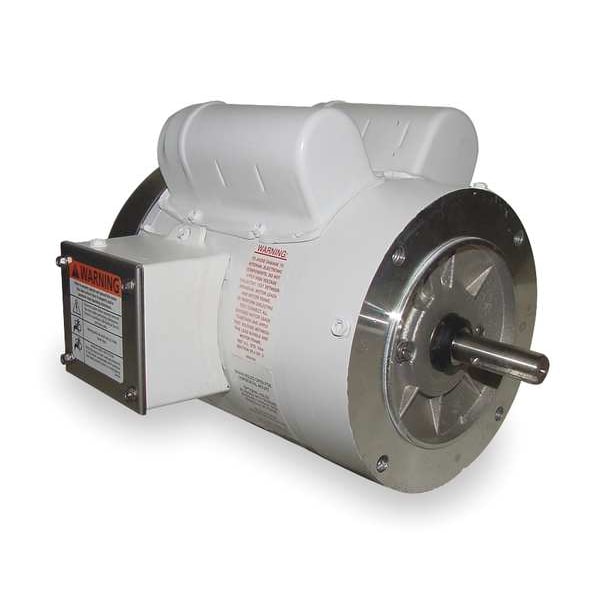

Washdown Mtr, Cap Strt, TEFC, 1 HP, 1725 rpm
Mfr # 056C17W15333
Zoro # G3453204
product price: $654.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Motor Frame Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056C17W15333
Zoro #
G3453204
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
5/8 in
Overall Length
12 3/16 in
Length Less Shaft
10 1/4 in
Body Dia.
6.5 in
Shaft Length
2 1/16 in
Bolt Circle Dia.
5 7/8 in
Description
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
