Shop CENTURY

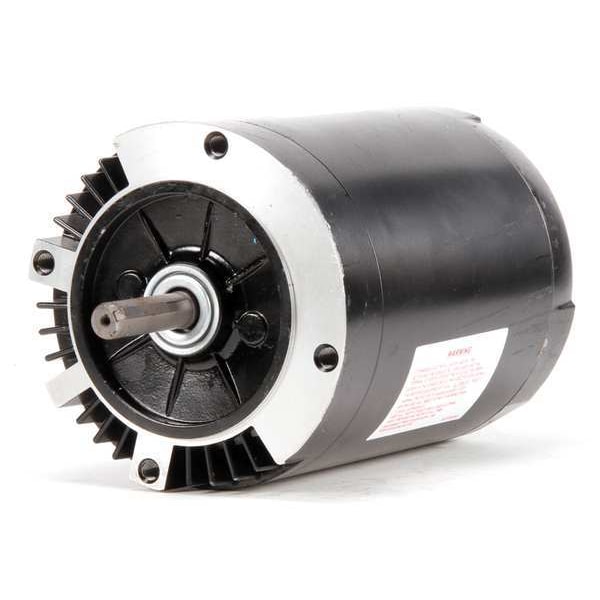

Motor, Split Ph, 1/4 HP, 1725,115V, 56CZ, ODP

  • Mfr # F393L

  • Zoro # G2332617

product price:  $304.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Hz
60 Hz
Phase
Single
Duty
Continuous
Motor Sub Application
Aeration Fan
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F393L
Zoro #
G2332617
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
9 13/16 in
Overall Length
12 1/4 in
Shaft Length
2 7/16 in
Manufacturers Warranty Length
1 yr
Body Dia.
6 1/2 in
Frame Size
56CZ
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Mounting Stud Thread Size
3/8"-16
Wire Rope Length
12 1/4 in

Details

Motor Design
Split-Phase
Hz
60 Hz
Phase
Single
Duty
Continuous
Motor Sub Application
Aeration Fan
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
Item
C-Frame Motor
Motor Bearings
Ball
Motor Application
HVAC/R
Full Load Amps
5.0/3.0 A
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame
56CZ
HP
1/4, 1/12
Standards
CSA Certified
Nameplate RPM
1,725
RPM Range
1,701-1,800
Nominal Efficiency
0.62 %
Motor Service Factor
1.35
Application
Fan/Blower
Motor Shaft Design
Keyed
Capacitor Required
Capacitor Not Required
Motor Thermal Protection
Auto
No. of Speeds
2
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Not Usable at 208V
Weight
22 lb
Motor Frame Material
Steel
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Mounting Holes
(4) 3/8 in-16
Duty Cycle
Continuous
Number of Speeds
2
Mounting
Face
Shaft Design
Keyed
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Product Type
C-Frame Motor
Drive Type
Belt Drive
Frame Material
Steel
Bearing Type
Ball
Full Load Current @ 60 Hz
5.0/3.0 A
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Manufacturers Warranty
1 yr
Wattage
190 W
Nameplate Service Factor @ 60 Hz
1.35
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose

Description

C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/12 hp, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 2, Voltage 115V AC, 5.0/3.0 A Full Load Amps, 56CZ Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face
