  11. WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC

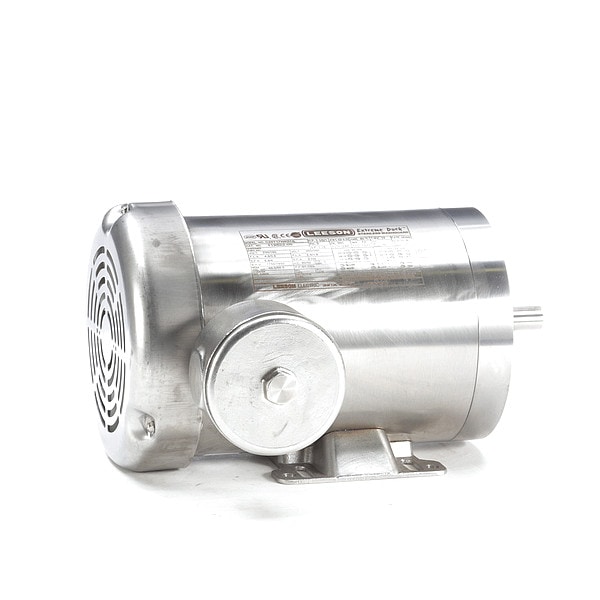

Leeson WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC 119522.00 - main

WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC

  • Mfr # 119522.00

  • Zoro # G600722965

product price: $2,029.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
119522.00
Zoro #
G600722965
UPC #
691720052983
Country of Origin
United States

Dimensions

Length Less Shaft
10 1/2 in
Shaft Dia.
5/8 in
Overall Length
12 7/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
7.4 in
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Application
General Purpose
Hz
60/50 Hz
Bearing Protection
Shaft Shields
Conduit Box Location
Exterior
Motor Shaft Rotation
CW/CCW
Voltage @ 50Hz
460V AC
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
1,750 RPM
No. of Speeds
1
Motor Bearings
Ball
Inverter Rating
3:1
Usable @ 208V
Not Usable at 208V
Ins. Class
F
Nominal Efficiency
86.5 %
Full Load Amps @ 50Hz
2.4 A
Inverter Rated
Inverter Rated
NEMA Design
B
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Shaft Material
Stainless Steel
Motor Mounting Type
C-Face
Removable Base
No
Motor Mounting Position
Horizontal
Motor Service Factor
1.2
Duty Cycle
Continuous
Weight
59 lb
Full Load Amps
4.8/2.4 A
Standards
CE, CSA Certified, UL Recognized
Finish
Unfinished
Drain Plugs
(1) in Conduit Box
Motor Shaft Design
Keyed
Endshield Material
Stainless Steel
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
